SenangWebs A-Frame Editor / Webverse Editor

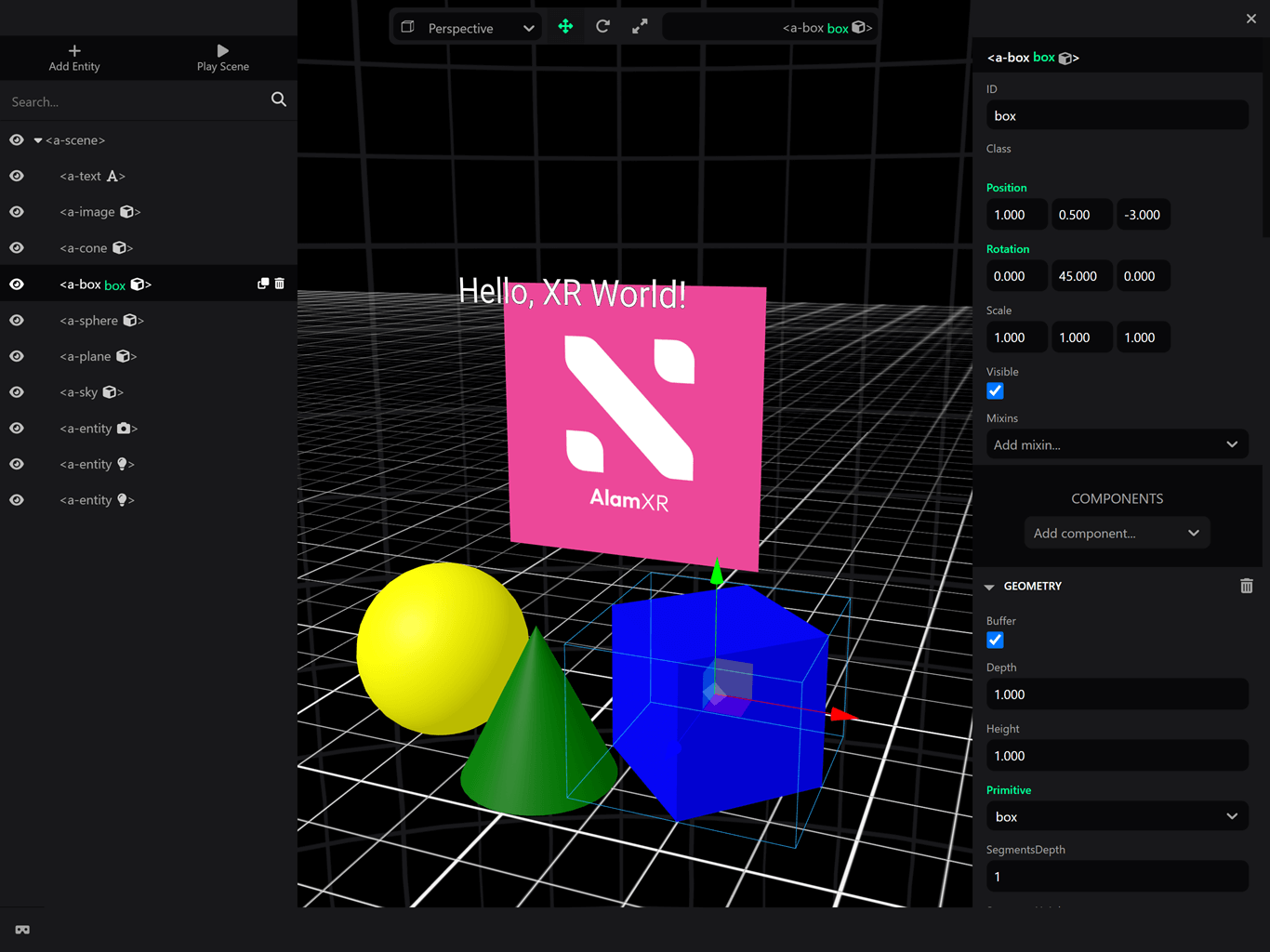

A powerful visual inspector for A-Frame scenes, forked and adapted for seamless integration with the SenangWebs ecosystem. This tool provides a DOM-like interface to inspect and modify your 3D scenes on the fly, dramatically speeding up development and debugging workflows.

Using the Editor

To use the master branch of the editor:

<a-scene
  inspector="url: https://unpkg.com/senangwebs-aframe-editor@latest/dist/sw-webverse.min.js"
>
</a-scene>

Acknowledgement & Credit

This project is a fork of the incredible A-Frame Inspector by the A-Frame team. We extend our sincere appreciation to the original authors and contributors for creating such a foundational and robust tool for the WebXR community. Our goal is to build upon their excellent work to tailor it for specific use cases within SenangWebs.

A-Frame Inspector

A visual inspector tool for A-Frame scenes. Just hit <ctrl> + <alt> + i on any A-Frame scene to open up the Inspector.

• Documentation / Guide
• Example

Also check out:

• A-Frame Watcher - Companion server to sync changes to HTML files.

Using the Inspector

Keyboard Shortcut

A-Frame comes with a keyboard shortcut to inject the inspector. Just open up any A-Frame scene (running at least A-Frame v0.3.0) and press <ctrl> + <alt> + i to inject the inspector, just like you would use a DOM inspector:

Specifying Inspector Build

This is done with the inspector component. By default, this is set on the scene already. If we want, we can specify a specific build of the Inspector to inject by passing a URL. For debugging:

<a-scene inspector="url: http://localhost:3333/dist/aframe-inspector.js">
  <!-- Scene... -->
</a-scene>

To use the master branch of the Inspector:

<a-scene
  inspector="url: https://cdn.jsdelivr.net/gh/aframevr/aframe-inspector@master/dist/aframe-inspector.min.js"
>
</a-scene>

Local Development

git clone [email protected]:aframevr/aframe-inspector.git
cd aframe-inspector
npm install
npm start

Then navigate to http://localhost:3333/examples/

Self-hosting the sample-assets directory

The textures modal is using https://aframe.io/sample-assets/dist/images.json to get the available textures. The GitHub repository for those assets is https://github.com/aframevr/sample-assets

If you want to self-host this directory, do the following:

cd examples
git clone [email protected]:aframevr/sample-assets.git

edit index.html and define before any script tag this global variable:

<script>
  window.AFRAME_SAMPLE_ASSETS_ROOT = './sample-assets/';
</script>
