🚀 Salesforce External ID Manager

A powerful Node.js CLI tool that manages External ID fields in Salesforce objects and generates beautiful interactive reports with ERD diagrams and schema details.

✨ Features

🔍 Automatic Field Detection - Checks if External_Id__c field exists in your Salesforce object
⚡ Smart Field Creation - Creates and deploys the External ID field if missing
📊 Beautiful Reports - Generates stunning HTML reports with dark theme
🎨 ERD Visualization - Interactive Entity Relationship Diagrams
📈 Interactive Data Tables - Search, sort, and paginate through schema details
💾 Export Options - Save SVG diagrams and CSV schema files
🌙 Dark Theme - Eye-friendly interface using Tailwind CSS

Screenshots

📋 Prerequisites

Node.js >= 14.0.0
Salesforce CLI (sf command)
sf-mohanc plugin for metadata describe functionality

Install Salesforce CLI Plugin

sf plugins install sfdx-mohanc-plugins

Make sure you have a SFDX project

If required you can create one:

#Generate a project called "mywork":
sf project generate --name mywork

🔧 Installation

npm install -g sf-external-id-manager

Now use from anywhere

sf-external-id -s Campaign -o myorg -p ~/projects/myproject

🎯 Usage

Single Object Mode

sf-external-id -s <sObject> -o <username> -p <project-path>

Example:

sf-external-id -s Campaign -o ea10 -p ~/projects/ea10/ea10

Batch Mode (Multiple Objects)

sf-external-id -s <sObject1>,<sObject2>,<sObject3> -o <username> -p <project-path>

Example:

sf-external-id -s Campaign,Account,Contact,Lead -o ea10 -p ~/projects/ea10/ea10

In batch mode, the tool will:

Process all objects sequentially
Check each object for the External_Id__c field
Create the field where it's missing
Generate a comprehensive batch report (no ERD/schema in batch mode)
Show summary statistics

Options

| Option | Alias | Description | Required | |--------|-------|-------------|----------| | --sobject | -s | Salesforce sObject name (comma-separated for batch mode) | ✅ Yes | | --username | -o | Salesforce org username or alias | ✅ Yes | | --project-path | -p | Path to your SFDX project directory | ✅ Yes |

📖 What It Does

Single Object Mode

When processing a single object, the tool:

1. Field Detection

Checks if the External_Id__c field exists in your specified sObject with the following properties:

Type: Text(64)
External ID: ✓
Unique: ✓
Required: ✓
Case Sensitive: ✗

2. Field Creation (if needed)

If the field doesn't exist, the tool will:

Create the field metadata file in your SFDX project
Generate a deployment package
Deploy to your Salesforce org
Wait for deployment completion

3. Report Generation

Generates a comprehensive HTML report containing:

ERD Diagram: Visual representation of your object relationships
Schema Table: Interactive table with all field details including:
- Field names
- Data types
- Properties (required, unique, external ID, etc.)
- Descriptions

Batch Mode

When processing multiple objects (comma-separated), the tool:

1. Sequential Processing

Processes each object one by one
Checks for External_Id__c field existence
Creates the field if missing
Tracks success/failure for each object

2. Batch Report Generation

Generates a summary HTML report with:

Statistics Dashboard: Total objects, existing fields, newly created, failed
Object Details Table: Status of each object with timestamps
Interactive Features: Search, sort, and export to CSV
Summary Section: Overall processing results and timing

Note: Batch mode does not generate ERD diagrams or detailed schema tables to optimize performance.

📂 Output Structure

Single Object Mode

After running the tool in single object mode, you'll find:

your-sfdx-project/
├── force-app/
│   └── main/
│       └── default/
│           └── objects/
│               └── YourObject/
│                   └── fields/
│                       └── External_Id__c.field-meta.xml
├── extId_pkg.xml
└── reports/
    ├── YourObject.svg           # ERD diagram
    ├── YourObject.csv           # Schema CSV
    └── YourObject_report.html   # Interactive report

Batch Mode

After running the tool in batch mode, you'll find:

your-sfdx-project/
├── force-app/
│   └── main/
│       └── default/
│           └── objects/
│               ├── Object1/
│               │   └── fields/
│               │       └── External_Id__c.field-meta.xml
│               ├── Object2/
│               │   └── fields/
│               │       └── External_Id__c.field-meta.xml
│               └── ...
├── extId_pkg.xml
└── reports/
    └── batch_external_id_report.html   # Batch summary report

🎨 Interactive Report Features

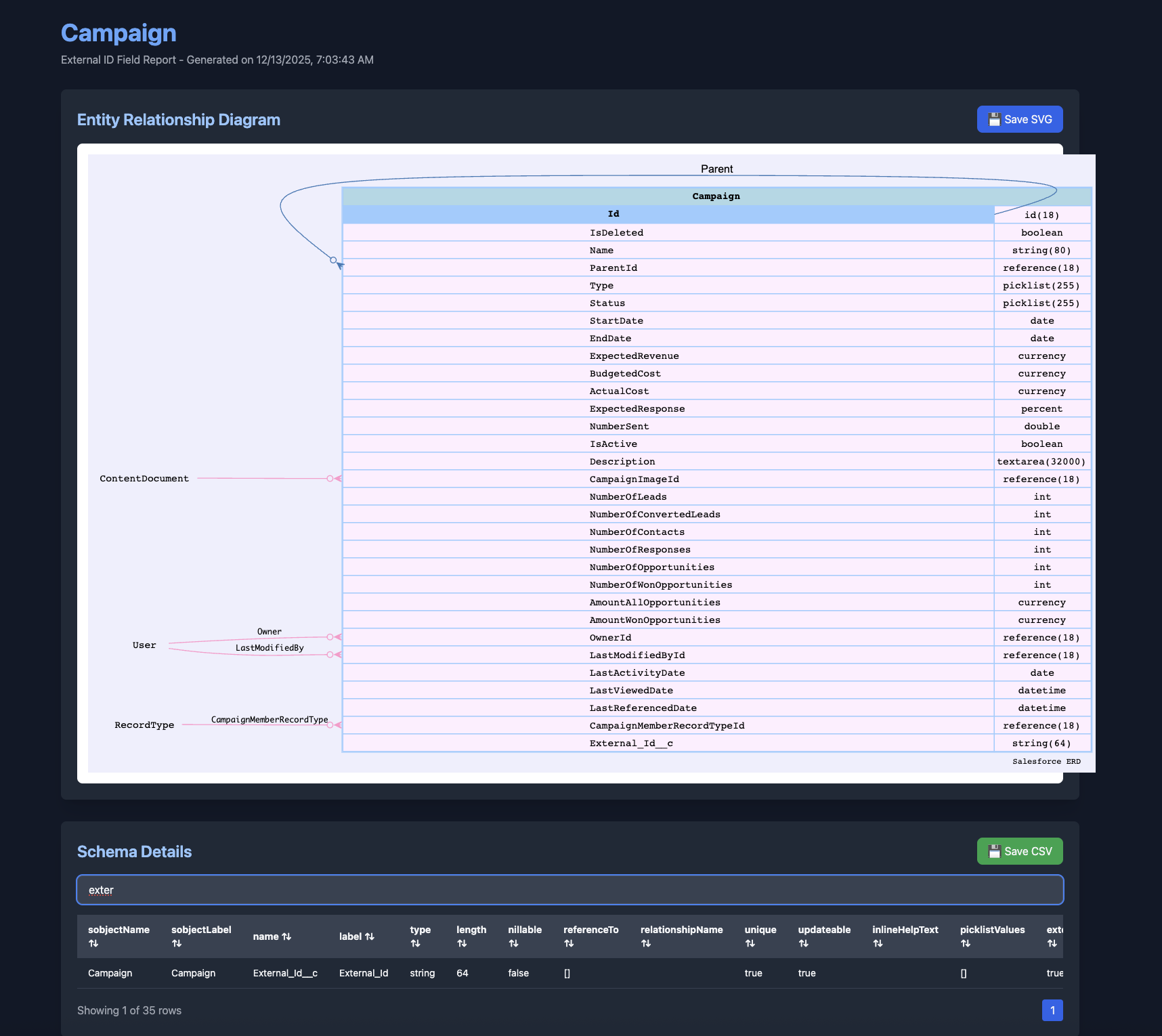

Single Object Report

The generated HTML report includes:

🔍 Search Functionality

Real-time search across all columns
Instant filtering as you type

📊 Sortable Columns

Click any column header to sort
Toggle between ascending/descending order

📄 Pagination

50 rows per page
Easy navigation between pages
Row count display

💾 Export Options

Save SVG: Download the ERD diagram
Save CSV: Export the schema data

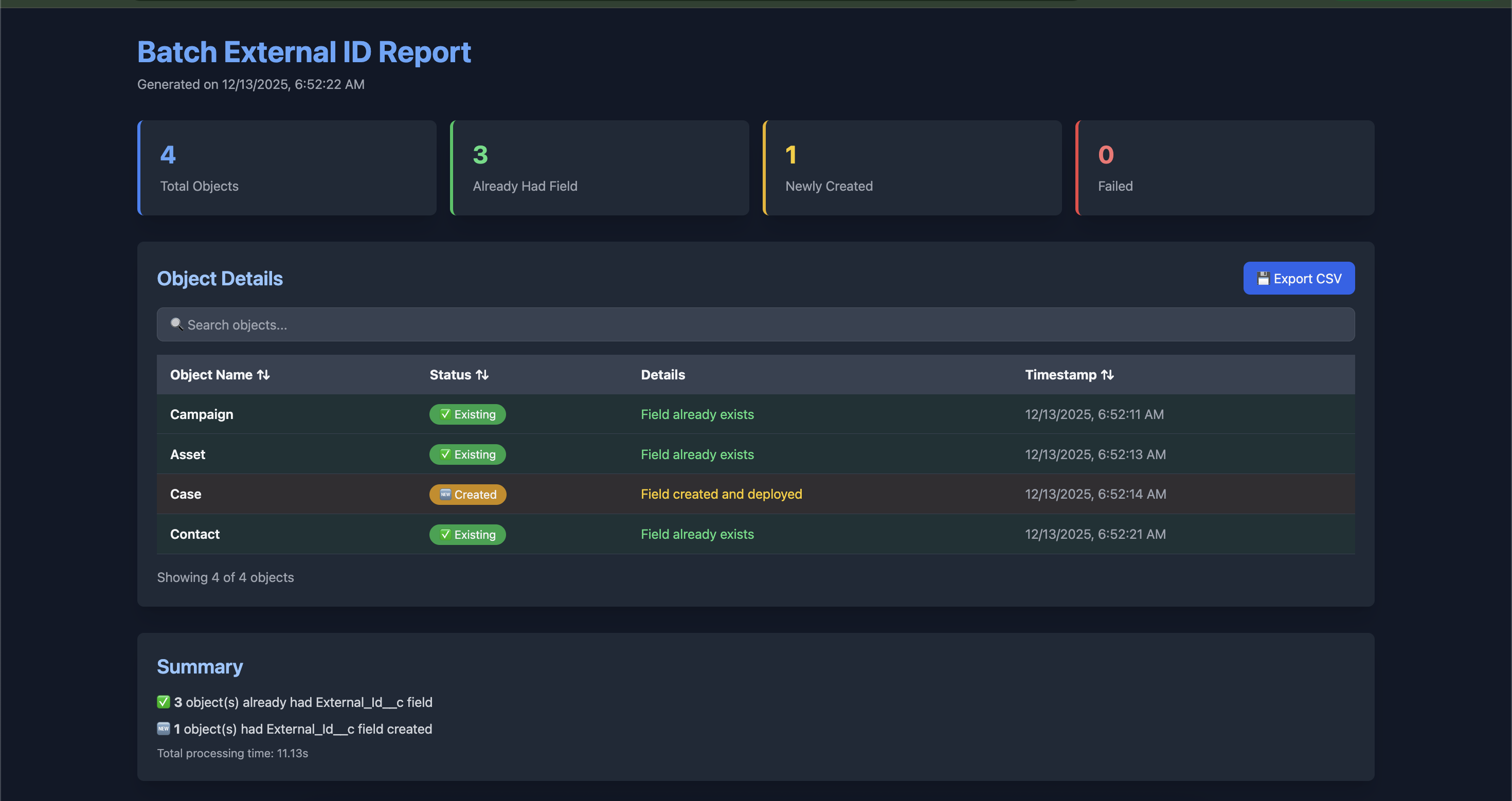

Batch Report

The batch report includes:

📊 Statistics Dashboard

Total objects processed
Objects with existing External_Id__c
Newly created fields
Failed operations

🔍 Interactive Table

Search across all objects
Sort by object name, status, or timestamp
Color-coded status badges (✅ Existing, 🆕 Created, ❌ Failed)

💾 Export Options

Export CSV: Download the complete batch results

📈 Summary Section

Detailed breakdown of results
Total processing time
Operation timestamps

🌙 Both Reports Feature

Beautiful, eye-friendly dark interface
Powered by Tailwind CSS
Fully responsive design

🔍 Example Workflow

Single Object Example

# Step 1: Run the tool
sf-external-id -s Campaign -o ea10 -p ~/projects/ea10/ea10

# Output:
# 🚀 Salesforce External ID Manager
# ================================
#
# Username: ea10
# Project Path: ~/projects/ea10/ea10
# Mode: 🎯 Single Object
# sObject: Campaign
#
# 🔍 Checking for External_Id__c field in Campaign...
# ❌ External_Id__c field not found
#
# 📝 Creating External_Id__c field for Campaign...
# ✅ Field metadata file created
# ✅ Package.xml created
#
# 🚀 Deploying to org...
# ✅ External_Id__c field deployed successfully!
#
# 📊 Generating report for Campaign...
# 🎨 Generating ERD and schema...
#
# ✅ Report generated: ~/projects/ea10/ea10/reports/Campaign_report.html
# 📁 Files created:
#    - ~/projects/ea10/ea10/reports/Campaign.svg
#    - ~/projects/ea10/ea10/reports/Campaign.csv
#    - ~/projects/ea10/ea10/reports/Campaign_report.html
#
# 🎉 Process completed successfully!
# 👉 Open the report: ~/projects/ea10/ea10/reports/Campaign_report.html

Batch Mode Example

# Step 1: Run the tool for multiple objects
sf-external-id -s Campaign,Account,Contact,Lead -o ea10 -p ~/projects/ea10/ea10

# Output:
# 🚀 Salesforce External ID Manager
# ================================
#
# Username: ea10
# Project Path: ~/projects/ea10/ea10
# Mode: 📦 Batch (4 objects)
# Objects: Campaign, Account, Contact, Lead
#
# 📦 Batch Mode: Processing 4 object(s)...
# ============================================================
#
# [1/4] Processing: Campaign
# 🔍 Checking for External_Id__c field in Campaign...
# ✅ Campaign: External_Id__c field already exists
#
# [2/4] Processing: Account
# 🔍 Checking for External_Id__c field in Account...
# ❌ Account: External_Id__c field not found - creating...
# 📝 Creating External_Id__c field for Account...
# 🚀 Deploying to org...
# ✅ Account: External_Id__c field created successfully
#
# [3/4] Processing: Contact
# 🔍 Checking for External_Id__c field in Contact...
# ✅ Contact: External_Id__c field already exists
#
# [4/4] Processing: Lead
# 🔍 Checking for External_Id__c field in Lead...
# ❌ Lead: External_Id__c field not found - creating...
# 📝 Creating External_Id__c field for Lead...
# 🚀 Deploying to org...
# ✅ Lead: External_Id__c field created successfully
#
# ============================================================
# 📊 Batch Processing Complete
# ============================================================
#
# ✅ Already had External_Id__c: 2
# 🆕 Newly created External_Id__c: 2
#
# 📊 Generating batch report...
# ✅ Batch report generated: ~/projects/ea10/ea10/reports/batch_external_id_report.html
#
# 🎉 Process completed successfully!
# 👉 Open the batch report: ~/projects/ea10/ea10/reports/batch_external_id_report.html

🛠️ Technical Details

External_Id__c Field Specification

<?xml version="1.0" encoding="UTF-8"?>
<CustomField xmlns="http://soap.sforce.com/2006/04/metadata">
    <fullName>External_Id__c</fullName>
    <caseSensitive>false</caseSensitive>
    <description>For migration purposes</description>
    <externalId>true</externalId>
    <label>External_Id</label>
    <length>64</length>
    <required>true</required>
    <trackHistory>false</trackHistory>
    <type>Text</type>
    <unique>true</unique>
</CustomField>

📝 License

This project is licensed under the MIT License. (c) Mohan Chinnappan

🐛 Troubleshooting

Command not found: sf

Make sure Salesforce CLI is installed:

npm install -g @salesforce/cli

Command not found: sf mohanc

Install the sf-mohanc plugin:

sf plugins install  sfdx-mohanc-plugins

Deployment failed

Ensure you're authenticated to the Salesforce org:

sf org list
sf org login web -a ea10

Made with ❤️ for the Salesforce community
