SF Schema Builder

A world-class web UI for creating and managing Salesforce custom objects, fields, and schemas — directly via the SOAP Metadata API and REST API.

Screenshots

Installation

npm install -g sf-schema-builder

Running

sf-schema-builder start -p 7344

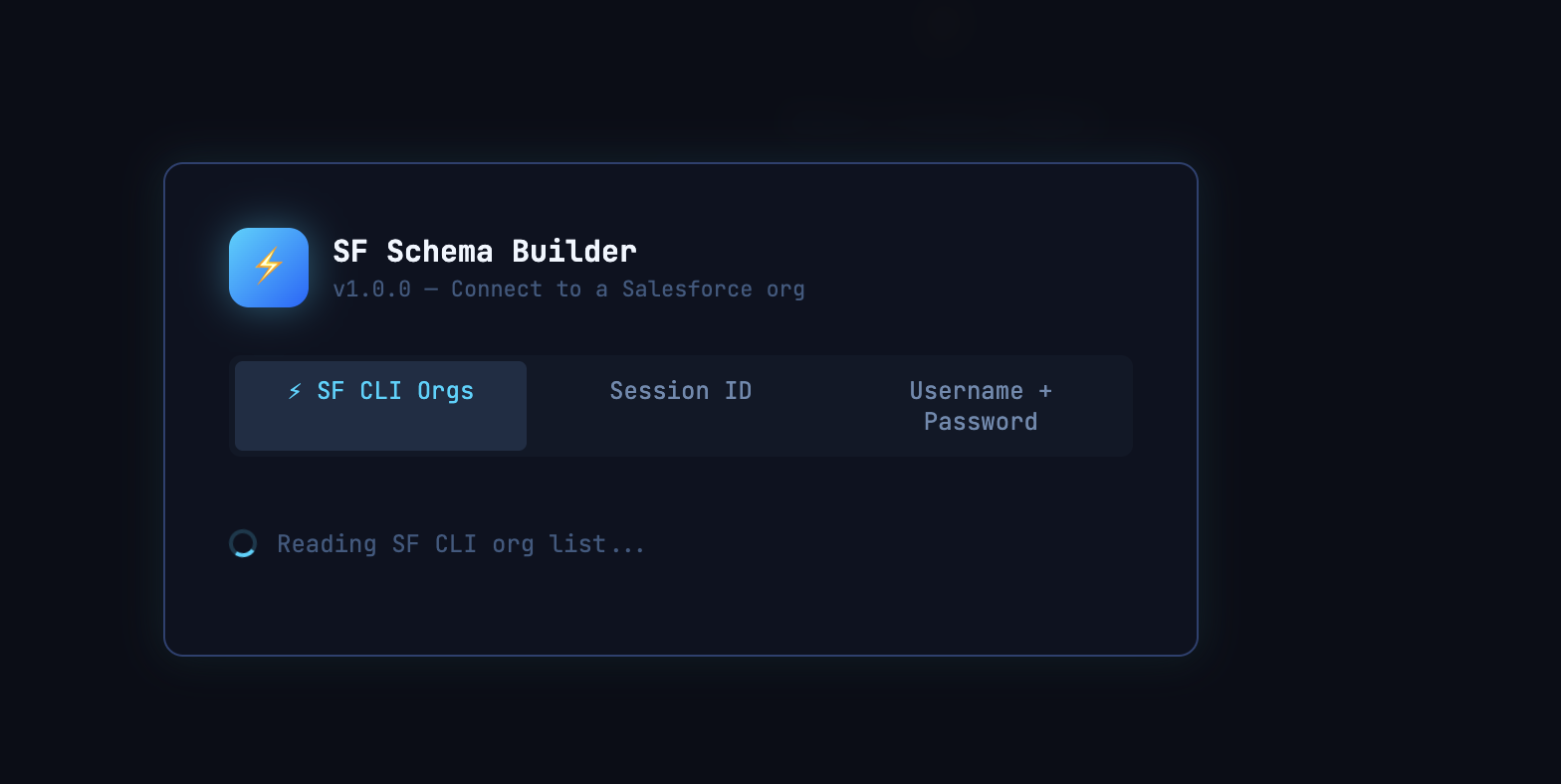

Authentication

Three methods available from the login screen:

| Method | Notes | |--------|-------| | ⚡ SF CLI Orgs | Auto-reads all authenticated orgs from ~/.sfdx / ~/.sf. Supports sf and sfdx CLIs. | | Session ID | Paste an Instance URL + Session ID (e.g. from SF REST Client or browser dev tools). | | Username + Password | Password + security token appended. Logs into login.salesforce.com. |

Features

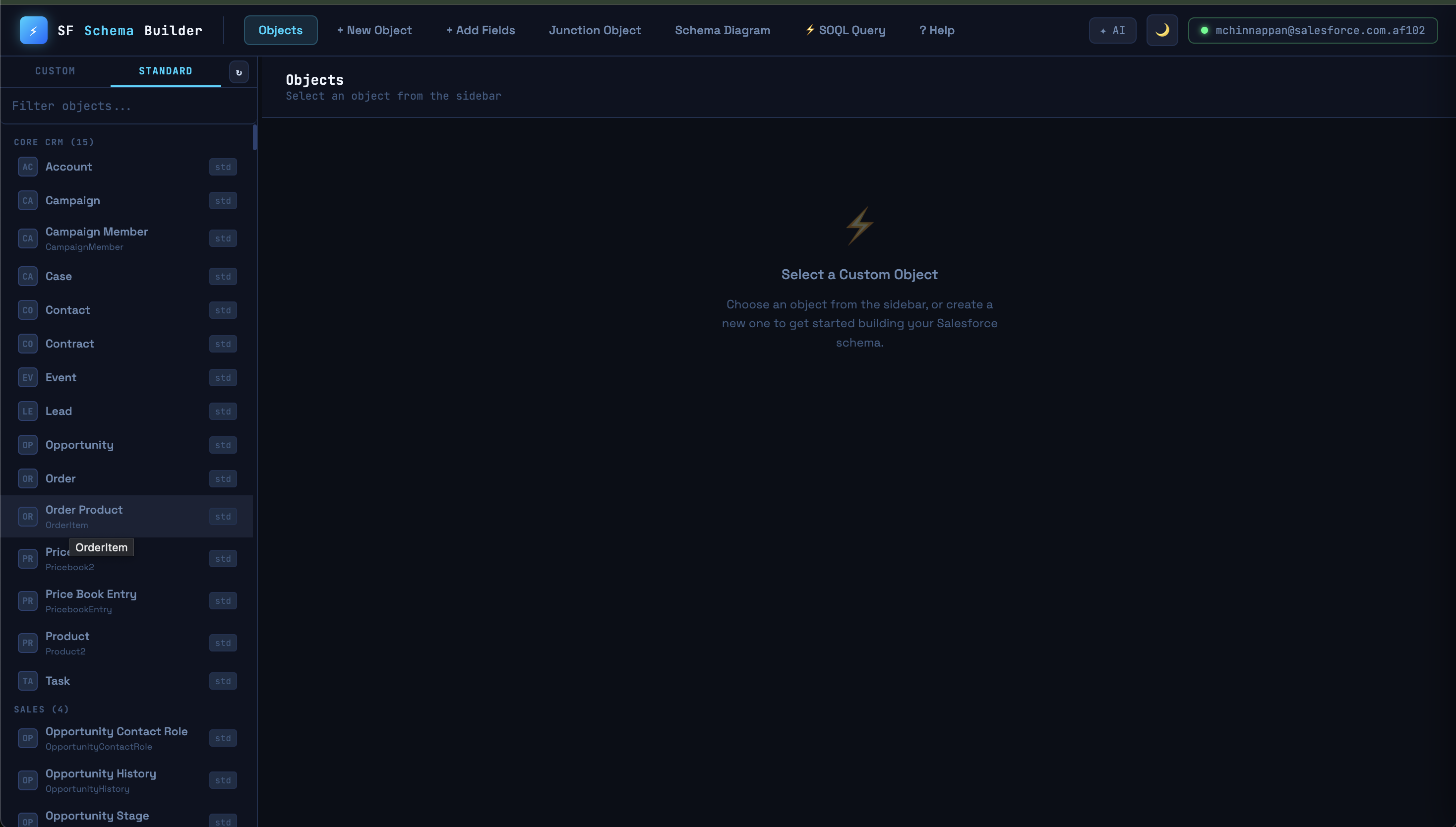

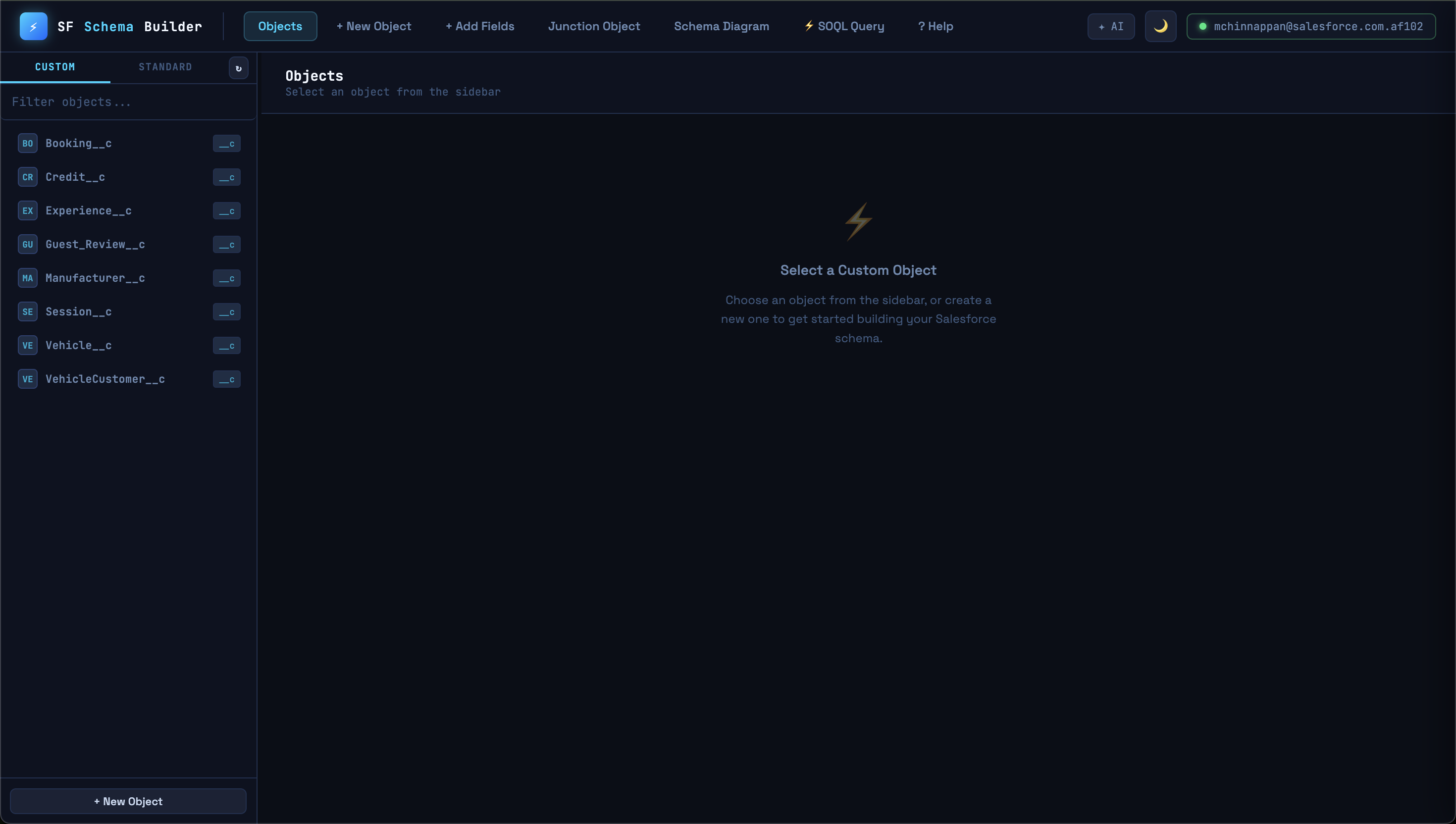

📦 Object & Field Browser

• Custom tab — all __c objects from your org via listMetadata
• Standard tab — all standard objects via describeGlobal, grouped by category (Core CRM, Sales, Service, Marketing, Platform, Community, Analytics)

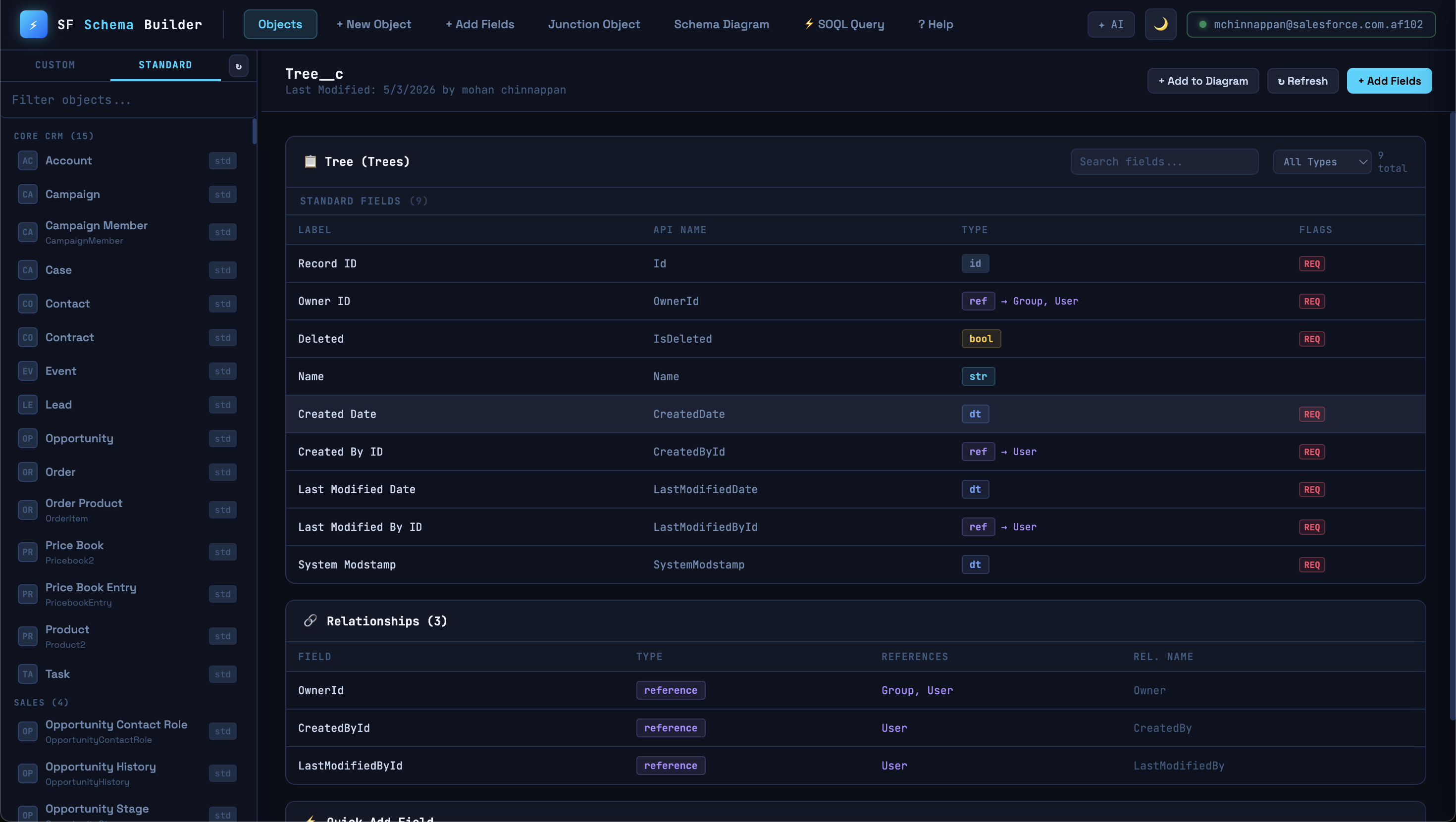

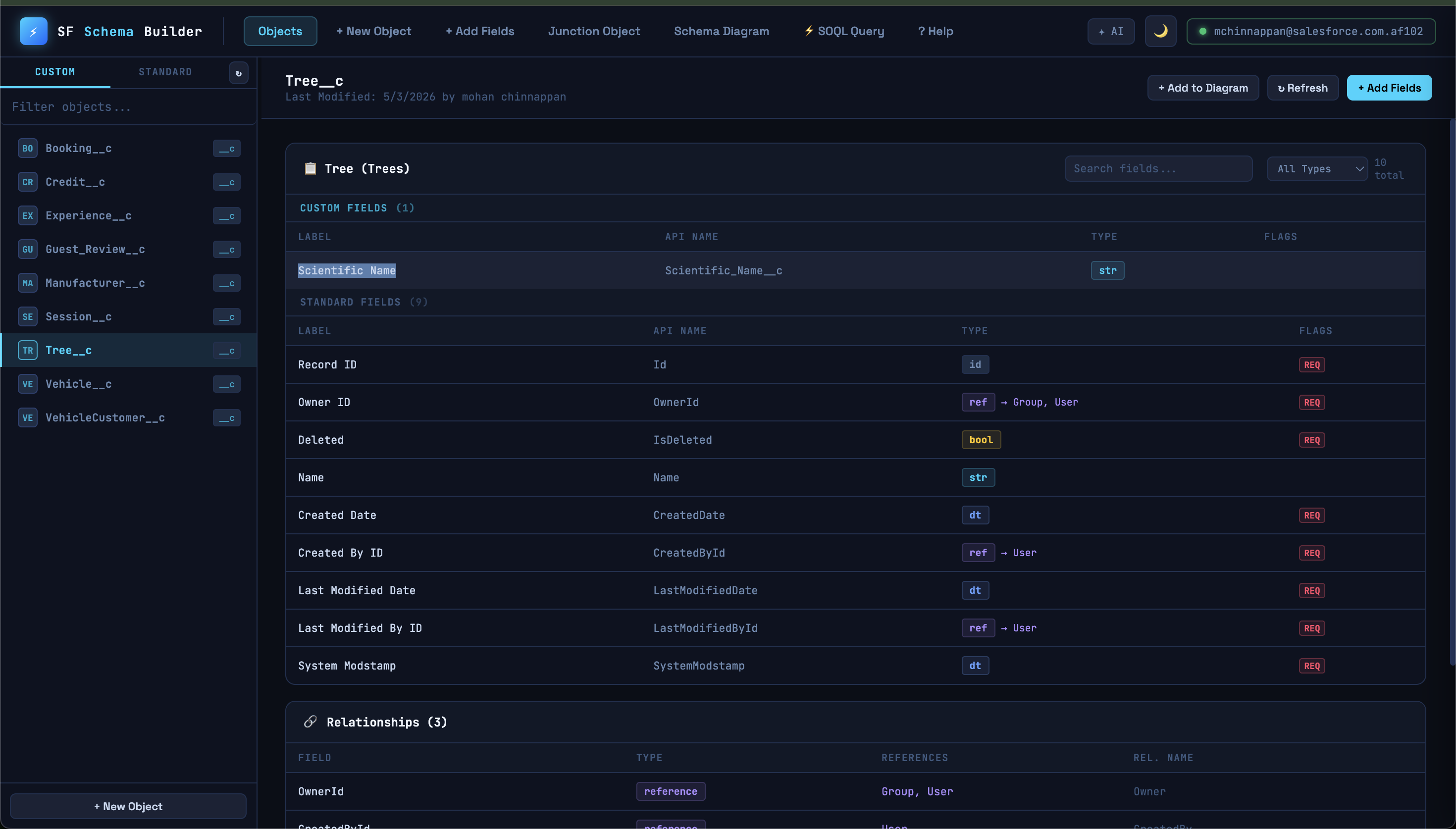

• Click any object to see all fields with types, labels, and flags (REQ / EXT / UNQ)
• Live field search — filter by label, API name, or type. Separate type filter dropdown
• ↻ Refresh button busts the describe cache and reloads from Salesforce
• Resizable sidebar — drag the handle between sidebar and main panel

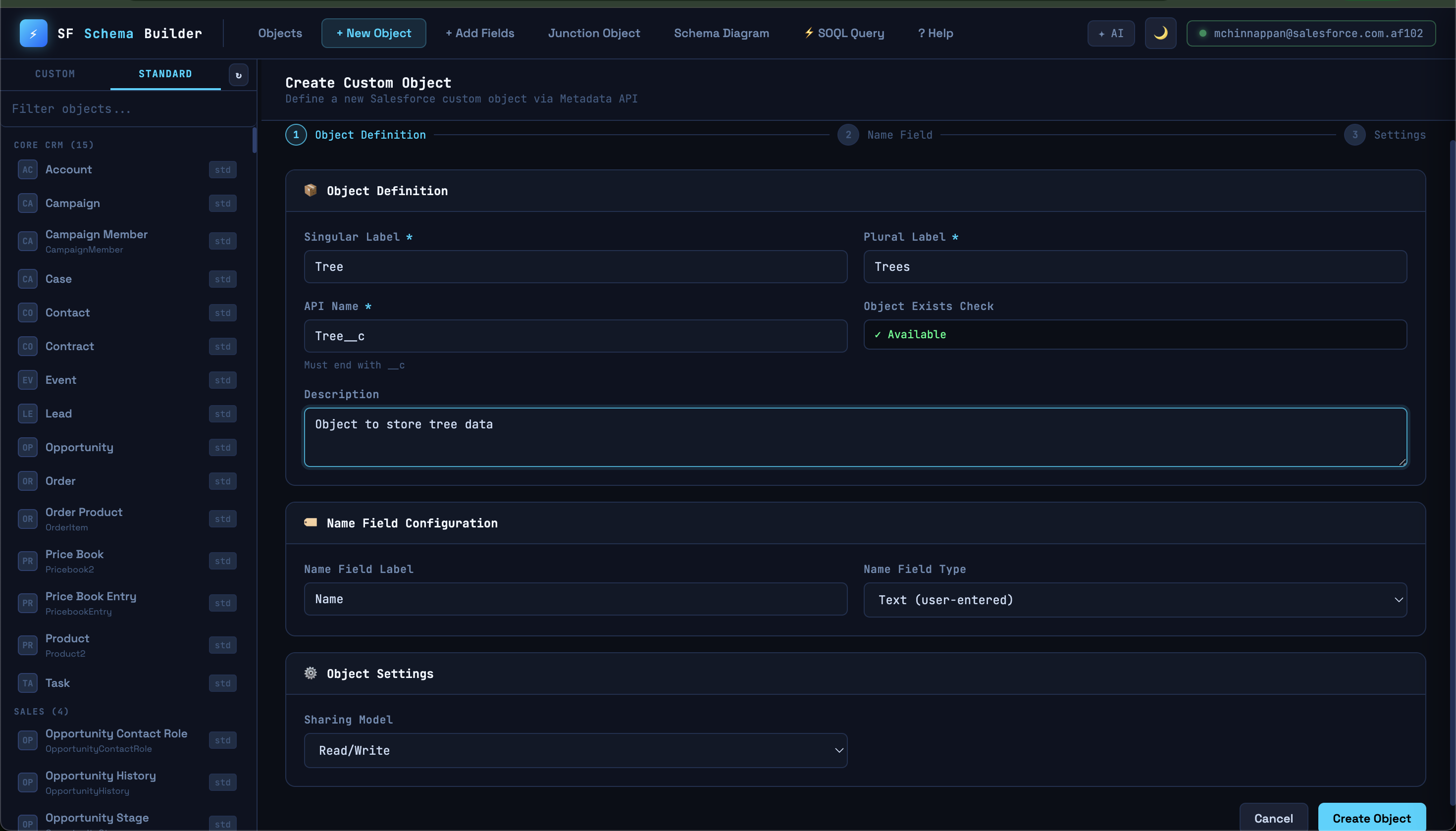

➕ Create Custom Objects

1. Enter label, plural label, API name (auto-filled)
2. Live "already exists?" check via listMetadata
3. Configure name field (Text or AutoNumber)
4. Set sharing model (ReadWrite / Read / Private / Controlled by Parent)

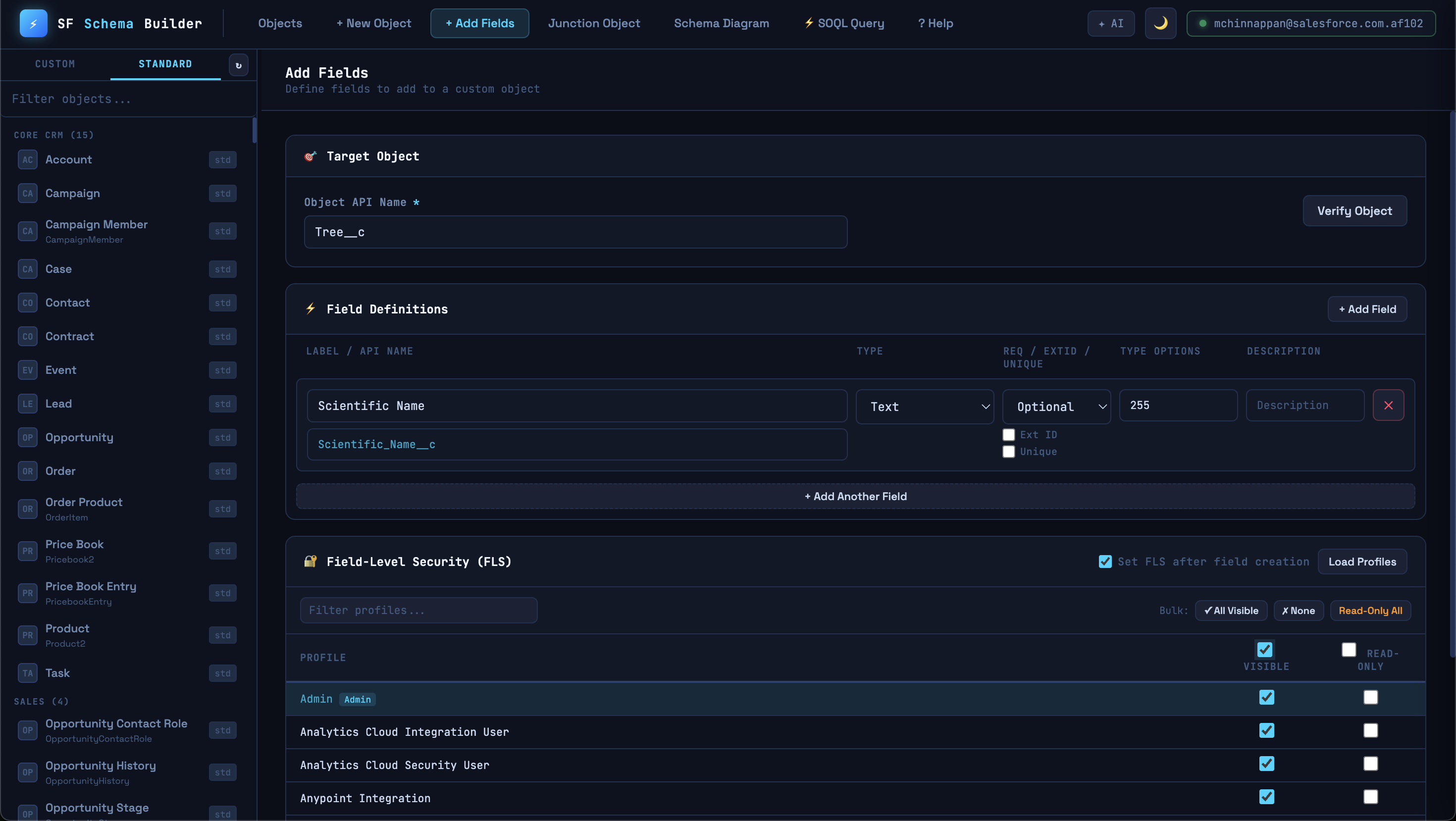

⚡ Add Fields

Supports all 15 field types with type-specific options:

| Type | Extra Options | |------|--------------| | Text | Length | | LongTextArea | Length + Visible Lines | | Number / Currency / Percent | Precision + Scale | | Lookup | Related Object, Delete Constraint | | MasterDetail | Related Object | | Picklist | Values (one per line) | | Date, DateTime, Email, Phone, URL, Checkbox | — |

Each field can be marked Required, External ID, and/or Unique.

FLS (Field-Level Security) — check "Set FLS" to configure profile visibility after field creation. Features:

• Loads all profiles from your org
• Bulk actions: All Visible, None, Read-Only All
• Search/filter profiles
• System Administrator pre-checked

⬡ Junction Objects

Creates a many-to-many relationship object in one click:

1. Junction object (AutoNumber name, Controlled by Parent)
2. MasterDetail field → Parent 1
3. MasterDetail field → Parent 2

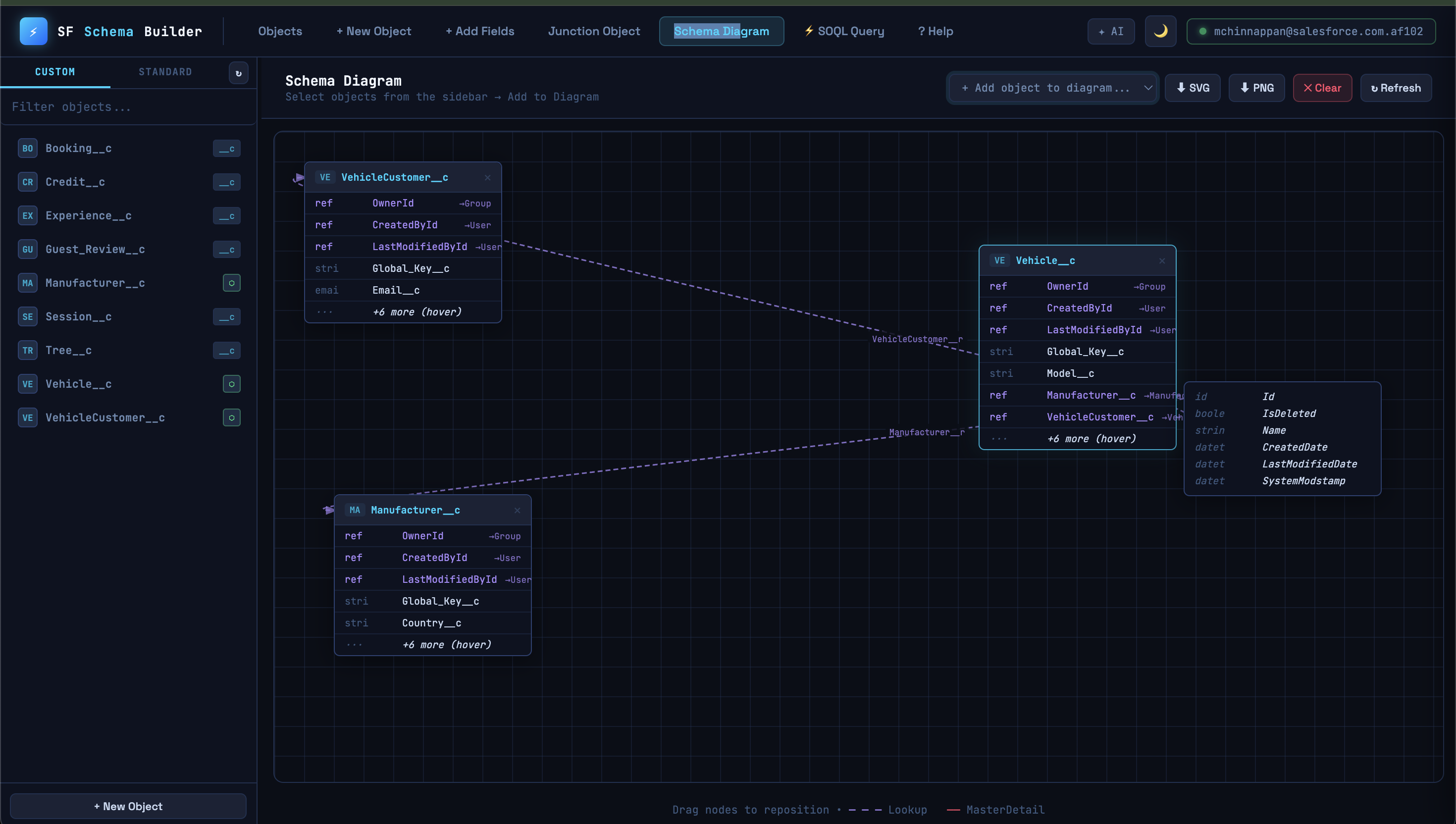

🗺 Schema Diagram

• Curated canvas — add only the objects you want to see
• Objects show real fields (fetched via describeSObject)
• Lookup relationships shown as dashed purple curved arrows
• MasterDetail relationships shown as solid red arrows
• Arrows start from the exact field row and point to the target node header
• Hover +N more to see all hidden fields in a tooltip
• Drag nodes to reposition — arrows redraw live
• ⬇ SVG — theme-aware vector export
• ⬇ PNG — 2× retina raster export

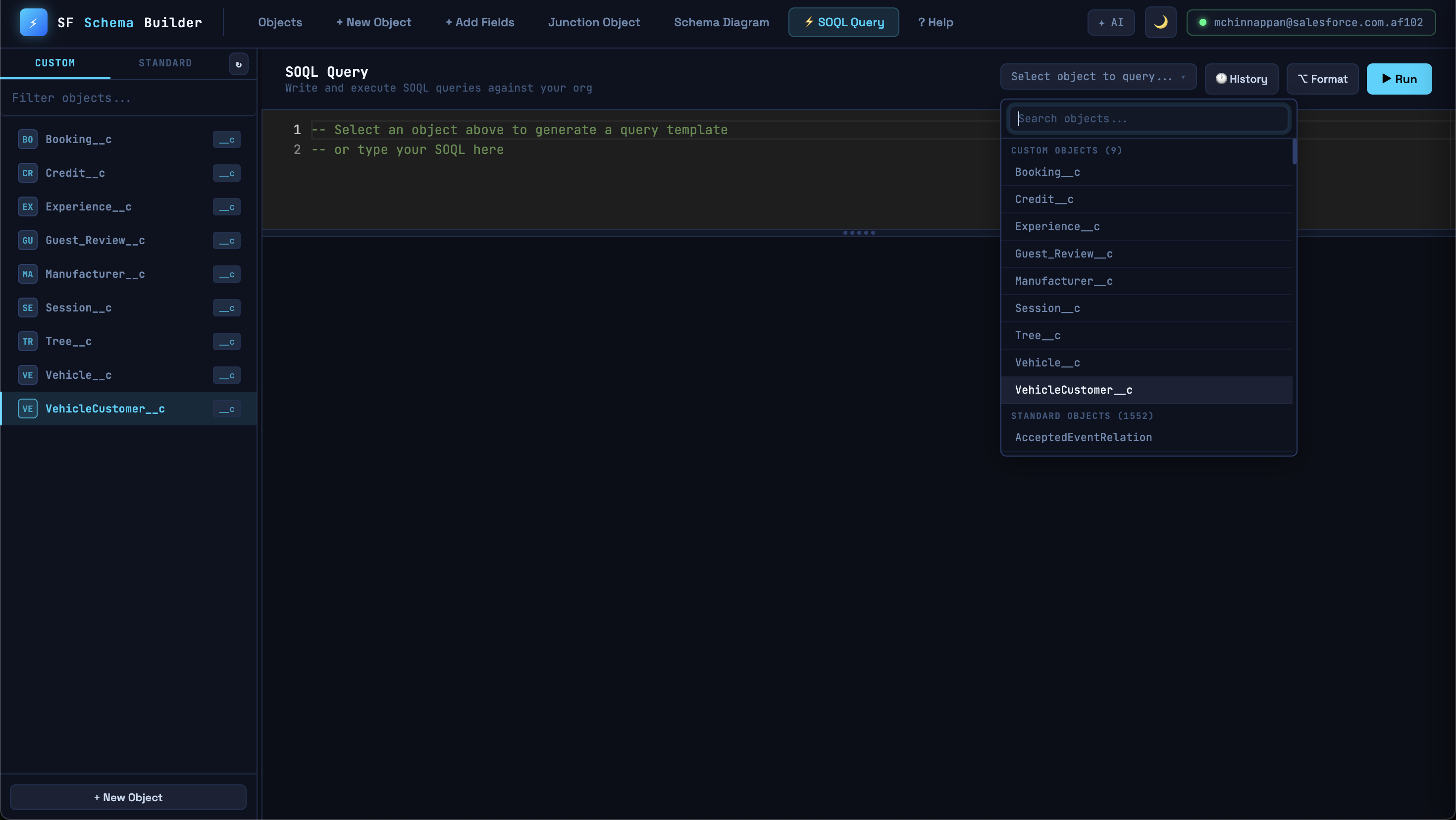

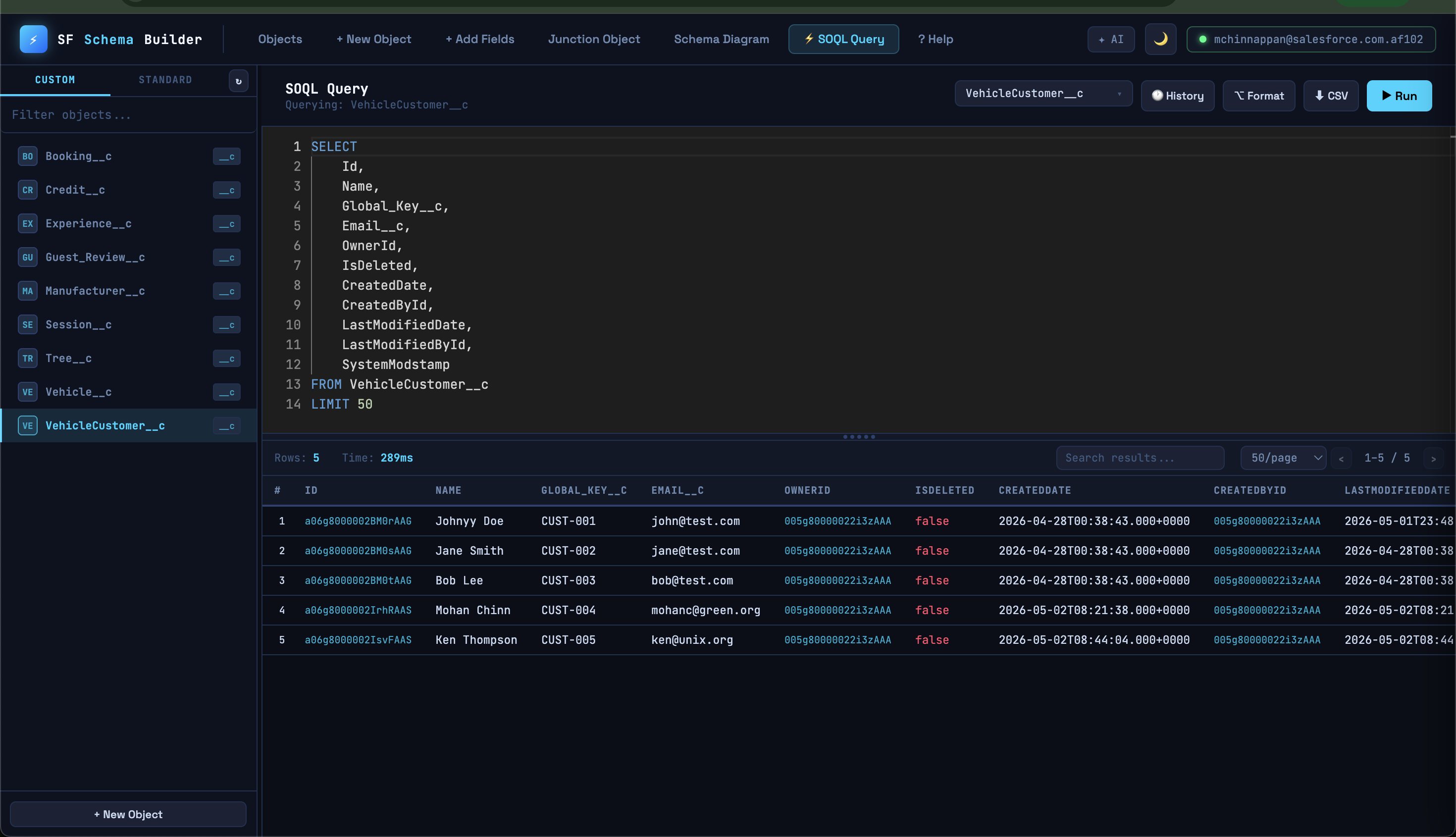

⚡ SOQL Query Editor

Powered by Monaco Editor (same engine as VS Code):

SELECT
    Id,
    Name,
    Account.Name,   -- relationship traversal
    Owner.Email
FROM Contact
WHERE Account.Type = 'Customer'
ORDER BY Name ASC
LIMIT 50

Autocomplete (Ctrl+Space):

• After SELECT / WHERE / ORDER BY — field names for the selected object
• After FROM — all object names (custom + standard)
• After Account. — fields on the related Account object (fetches on demand)
• Keywords and aggregate functions at any position

Editor features:

• SOQL syntax highlighting — keywords (blue), functions (yellow), fields (light blue), __c suffix (purple), strings (orange), dates (teal), comments (green)
• Ctrl+Enter / F5 to run
• ⌥ Format to auto-format
• Drag splitter to resize editor vs results pane
• Double-click splitter to reset height

Results table:

• Sortable columns (click header, ↑↓ indicator)
• Live search with match highlighting
• Pagination (25 / 50 / 100 / All per page)
• Relationship fields shown as Account.Name columns
• Color-coded cells: cyan (IDs), green/red (booleans), orange (numbers), purple (relationship fields)
• ⬇ CSV export of filtered results

Query History (🕐):

• Last 50 queries, deduplicated
• Shows time, row count, elapsed ms
• Click to reload any query
• Persisted to localStorage

✦ AI Sidekick (--enable-ai)

sf-schema-builder  start --enable-ai

Click ✦ AI in the topbar to open the slide-in panel.

Supported providers:

| Provider | Setup | |----------|-------| | 🦙 Ollama | Local — click ↻ Fetch to load installed models | | 🔵 Claude | sk-ant-... API key | | 🤖 OpenAI | sk-... API key | | ✕ xAI Grok | xai-... API key | | ⭐ Gemini | AIza... API key |

The AI automatically knows your current object and its fields. If it generates a SOQL query, a "↗ Use this SOQL in editor" button appears to paste it directly.

Settings and chat provider preference are saved to localStorage.

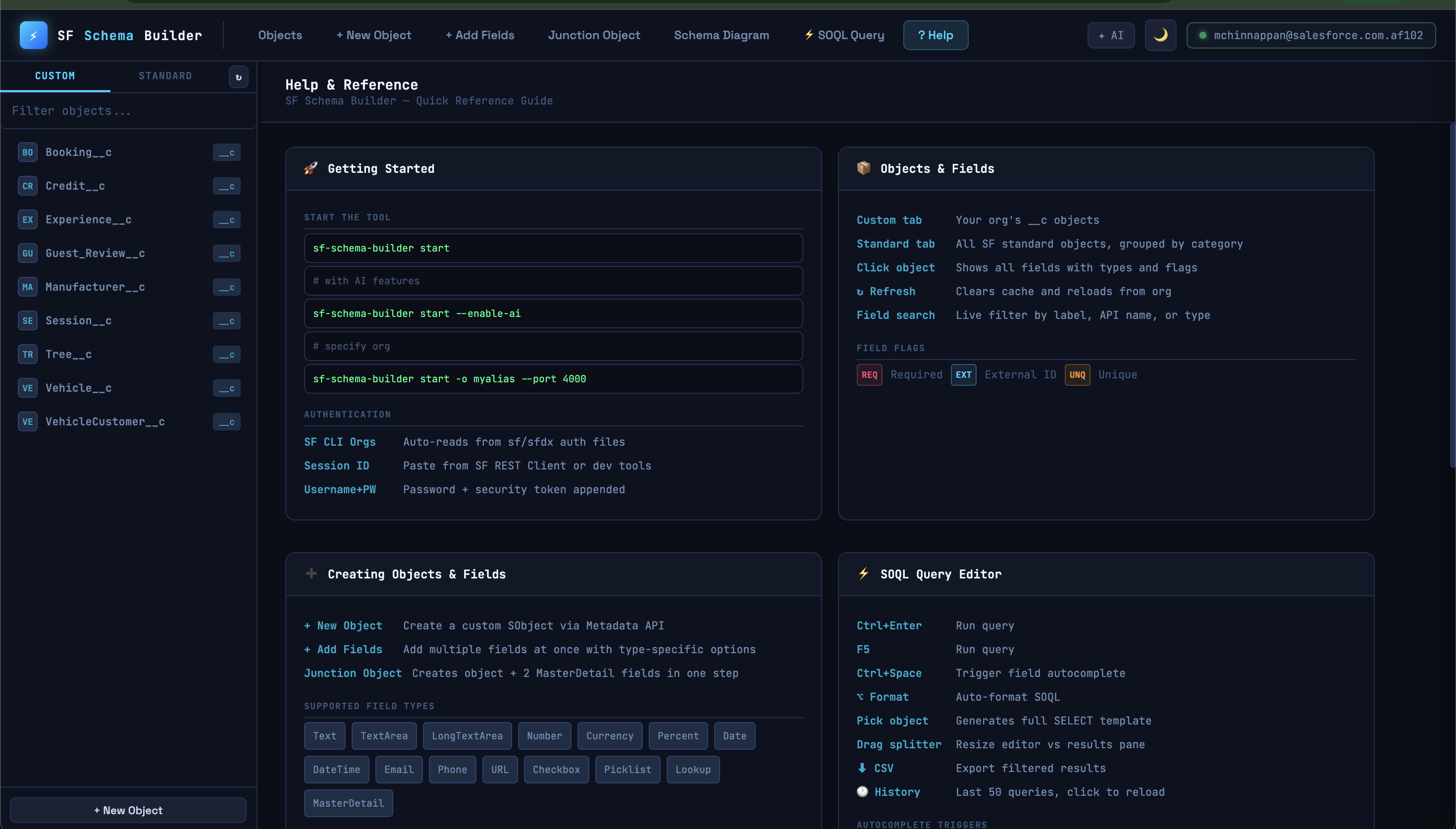

Keyboard Shortcuts

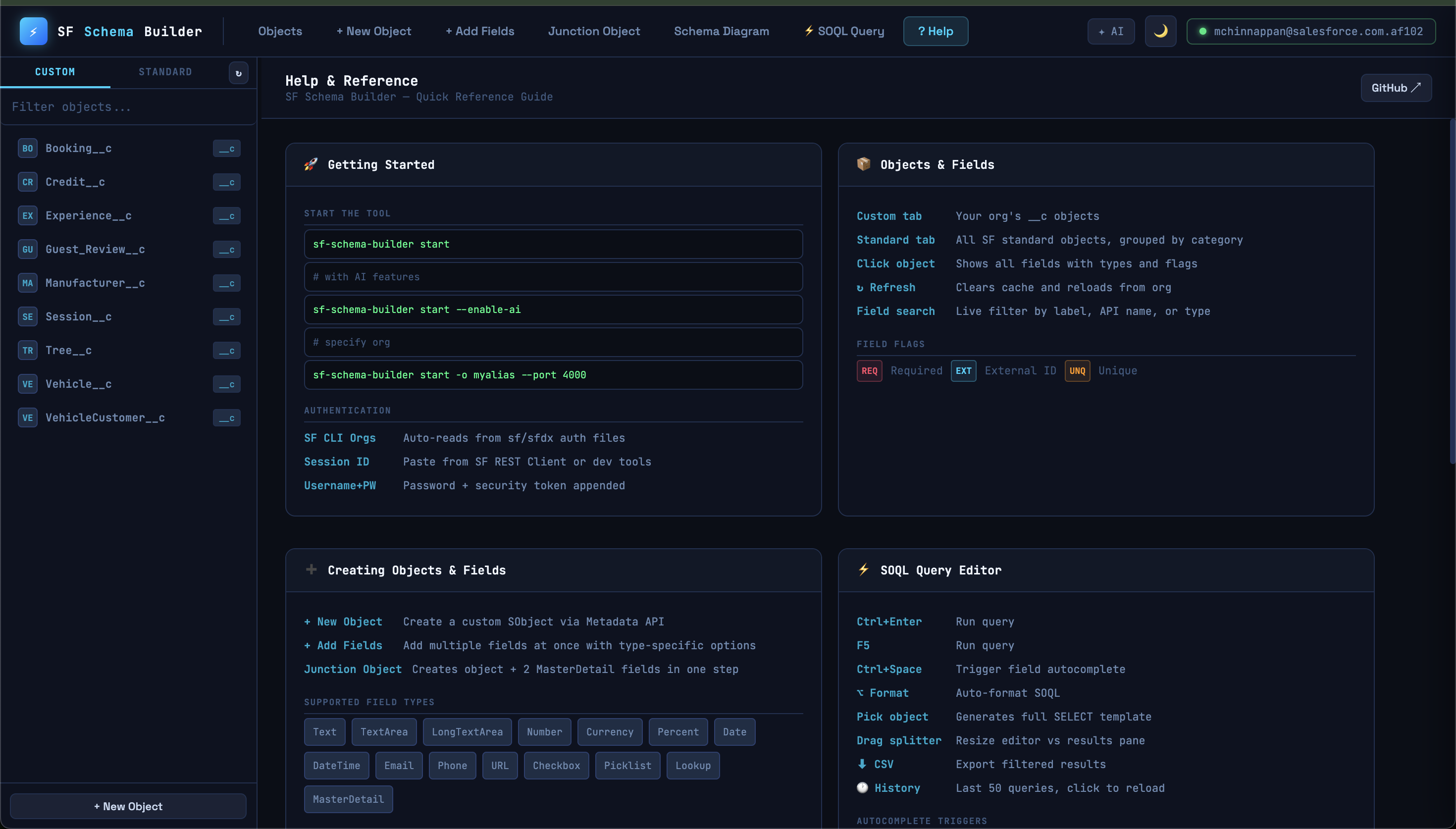

| Shortcut | Action | |----------|--------| | ? | Open Help page | | Ctrl+Enter | Run SOQL query / Send AI message | | F5 | Run SOQL query | | Ctrl+Space | Trigger field autocomplete in editor | | Escape | Close AI sidekick | | 🌙 button | Toggle dark/light theme |

API Routes

| Method | Path | Description | |--------|------|-------------| | GET | /api/auth/status | Connection status | | POST | /api/auth | Login with username+password | | POST | /api/auth/session | Connect with session ID | | GET | /api/orgs | SF CLI authenticated orgs | | POST | /api/orgs/connect | Connect to a specific org | | GET | /api/objects | List custom objects | | POST | /api/objects | Create custom object | | GET | /api/standard-objects | List all standard objects | | GET | /api/objects/:name/describe | Full field list | | POST | /api/objects/:name/fields | Create field | | POST | /api/junction | Create junction object | | GET | /api/profiles | List all profiles | | POST | /api/fls | Set field-level security | | POST | /api/query | Execute SOQL query | | GET | /api/ai/config | AI enabled status | | GET | /api/ai/ollama/models | Fetch Ollama model list | | POST | /api/ai/chat | AI chat proxy |

License

MIT (c) Mohan Chinnappan
