sf-settings-viewer

A Node.js CLI tool to retrieve Salesforce Settings metadata (like Security.settings) and render it as a beautiful, dark-themed HTML UI, with options to export the data as JSON or CSV. Also supports custom package.xml files for retrieving any Salesforce metadata.

This tool is especially useful for admins, architects, and developers who want a readable, auditable view of org-level settings that are otherwise buried in XML.

Screenshots

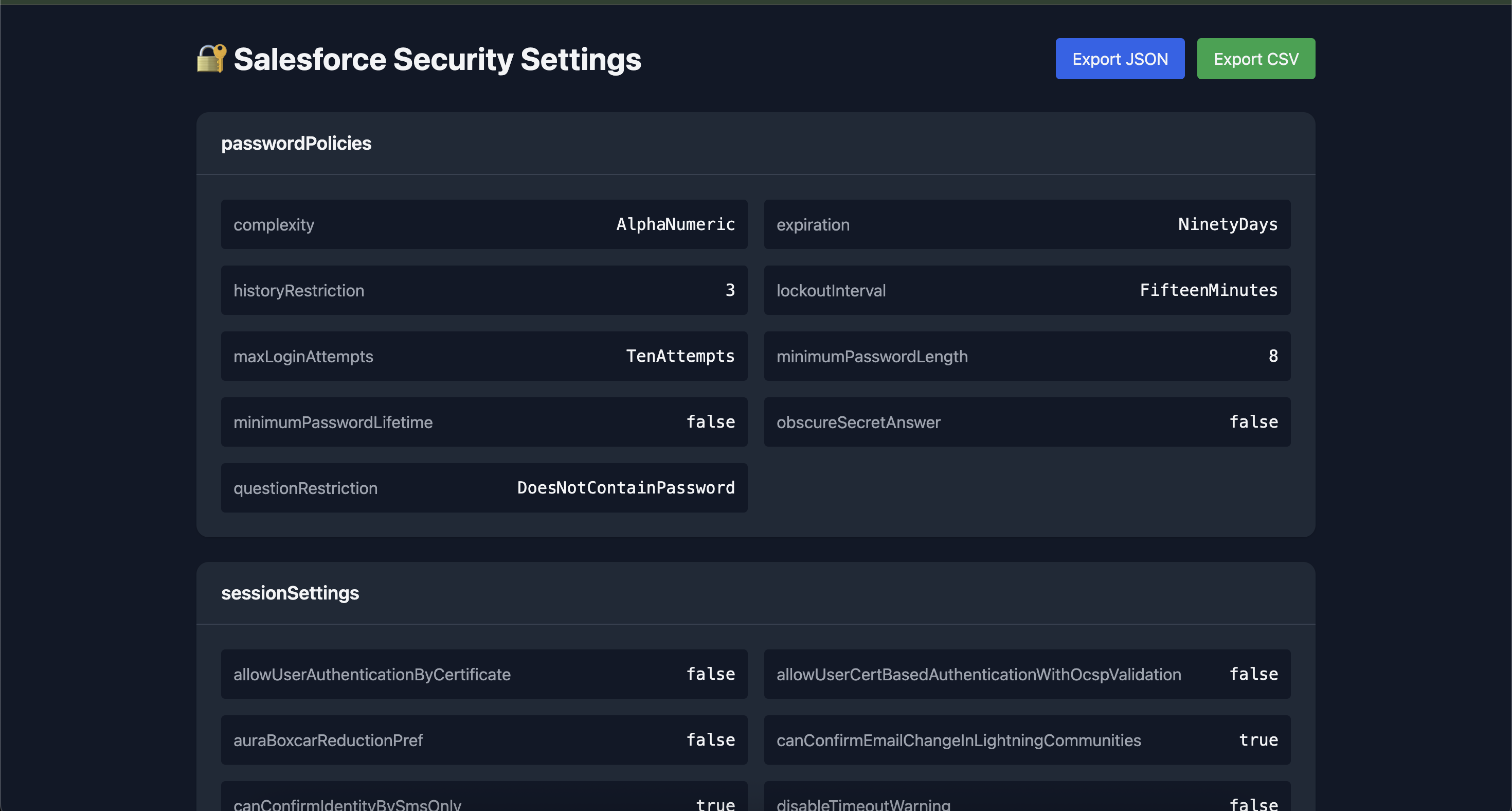

Security Settings

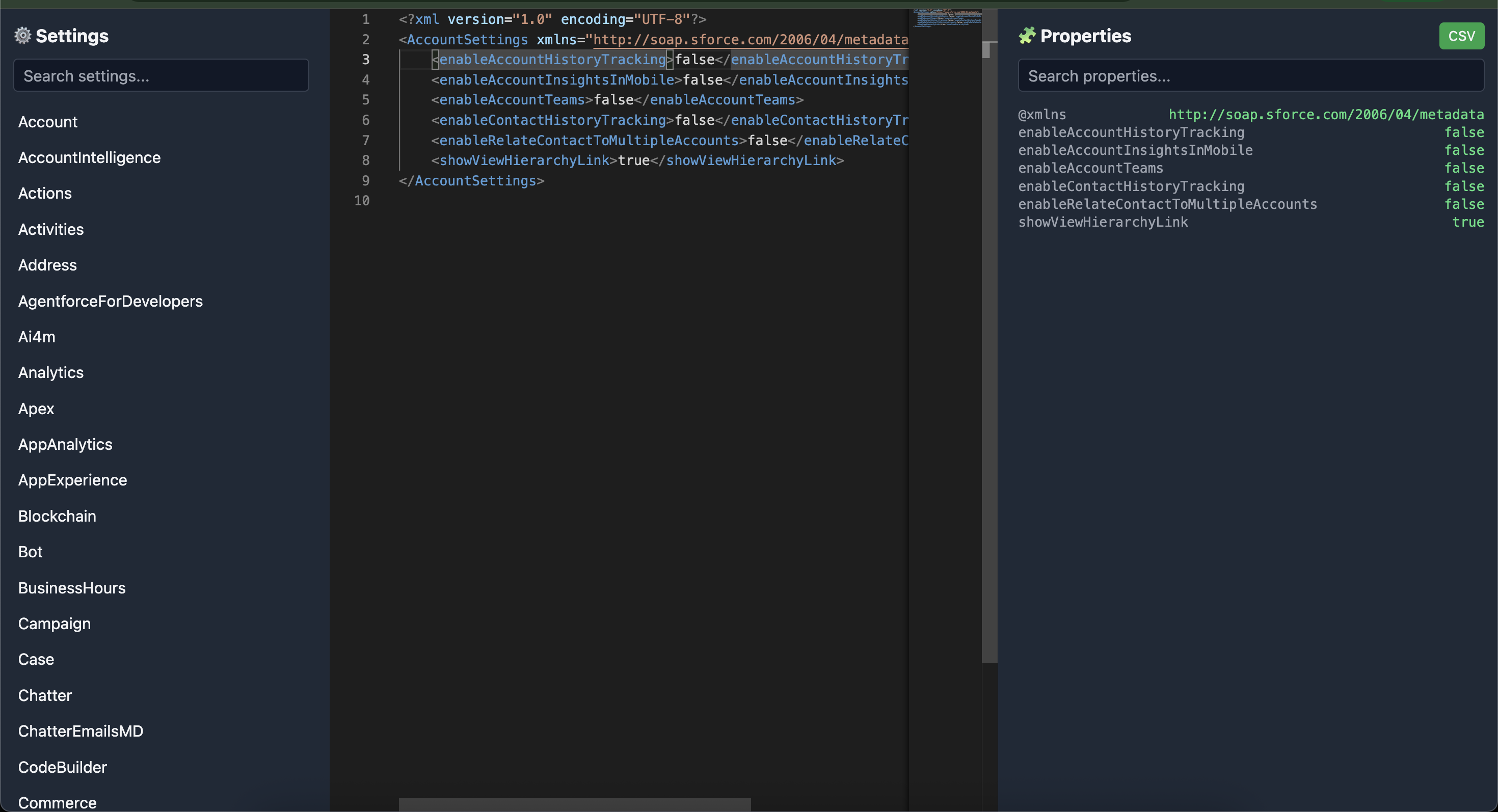

All Settings

✨ Features

• 🔐 Retrieves Salesforce Settings metadata (e.g., Security)
• 📦 Automatically generates a package.xml or use your own
• 🎯 NEW: Support for custom package.xml files to retrieve any metadata type
• ⚙️ Uses Salesforce CLI (sf) under the hood
• 📊 Export settings to JSON or CSV
• 🚀 Opens the generated UI automatically in your browser

📦 Installation

npm install -g sf-settings-viewer

🧰 Prerequisites

Make sure you have:

• Node.js 18+
• Salesforce CLI (sf) installed
• Authenticated Salesforce org (sf auth web login)

🚀 Usage

Get Security Settings

sf-settings-viewer \
  -o myOrgAlias \
  -i Security \
  -d ./mywork

Get All Settings

sf-settings-viewer \
  -o myOrgAlias \
  -i '*' \
  -d ./mywork

Use Custom Package.xml (NEW)

sf-settings-viewer \
  -o myOrgAlias \
  -p /path/to/package.xml \
  -d ./mywork

This allows you to retrieve any metadata type defined in your custom package.xml file (not just Settings). Perfect for:

• Retrieving multiple metadata types at once
• Custom retrieval workflows
• Integration with existing package.xml files

Options

| Option | Description | Required | | ---------------------- | ----------------------------------- | -------- | | -o, --org <username> | Salesforce org username or alias | Yes | | -i, --item <name> | Settings name (e.g., Security or *) | Either -i or -p | | -p, --package <file> | Path to custom package.xml file | Either -i or -p | | -d, --dir <dir> | Working directory | Yes | | -a, --artifact <name>| Artifact name (default: Settings) | No |

✅ The -d option is required and defines where the Salesforce project and metadata will be generated.

⚠️ You must specify either -i (item) or -p (package), but not both.

🔄 What the CLI Does (Step-by-Step)

When using -i (Settings mode)

1. Creates a Salesforce project

   sf project generate --name <dir>

2. Generates package.xml

   <types>
     <members>Security</members>
     <name>Settings</name>
   </types>

3. Retrieves metadata

   sf project retrieve start -x package.xml -o <org> -w 10

4. Reads the settings file

   force-app/main/default/settings/Security.settings-meta.xml

5. Parses XML and generates UI

   • Dark theme (Tailwind CSS)
   • Collapsible sections
   • Searchable keys & values

6. Outputs

   • settings.html
   • settings.json
   • settings.csv

7. Automatically opens the UI in your browser

When using -p (Custom package mode)

1. Creates a Salesforce project (if needed)
2. Copies your custom package.xml to the project directory
3. Retrieves metadata based on your package.xml
4. Saves package.xml to output/package.xml
5. Reports success and shows where metadata was retrieved

🖥️ UI Preview

The generated UI includes:

• 📁 Grouped sections (Password Policies, Session Settings, SSO, etc.)
• 🔍 Easy readability for audits
• 📤 Buttons to export as CSV or JSON

📁 Output Structure

Settings Mode (-i)

mywork/
├── force-app/
│   └── main/default/settings/
│       └── Security.settings-meta.xml
├── output/
│   ├── security-settings.html
│   ├── security-settings.json
│   ├── security-settings.csv
│   └── package.xml

Custom Package Mode (-p)

mywork/
├── force-app/
│   └── main/default/
│       ├── classes/
│       ├── triggers/
│       └── ... (whatever your package.xml retrieves)
├── output/
│   └── package.xml

💡 Example Use Cases

Audit Security Settings

sf-settings-viewer -o production -i Security -d ./audit-2024

Retrieve Multiple Metadata Types

Create a package.xml:

<?xml version="1.0" encoding="UTF-8"?>
<Package xmlns="http://soap.sforce.com/2006/04/metadata">
  <types>
    <members>*</members>
    <name>ApexClass</name>
  </types>
  <types>
    <members>*</members>
    <name>ApexTrigger</name>
  </types>
  <version>65.0</version>
</Package>

Then run:

sf-settings-viewer -o myOrg -p ./package.xml -d ./retrieve-all

Compare Settings Across Orgs

# Retrieve from prod
sf-settings-viewer -o production -i Security -d ./prod-settings

# Retrieve from sandbox
sf-settings-viewer -o sandbox -i Security -d ./sandbox-settings

# Compare the JSON files
diff ./prod-settings/output/settings.json ./sandbox-settings/output/settings.json

🔮 Future Enhancements

• Diff between two orgs
• Support all Settings types
• CI-friendly export mode
• Interactive UI for editing and deploying settings

📜 License

MIT © Mohan Chinnappan
