Salesforce Migration Studio

A modern web-based interface for Salesforce data migration — with real-time monitoring, AI-assisted analysis, data comparison, deletion candidate detection, guided tour, context-sensitive help, and export capabilities.

Screenshots

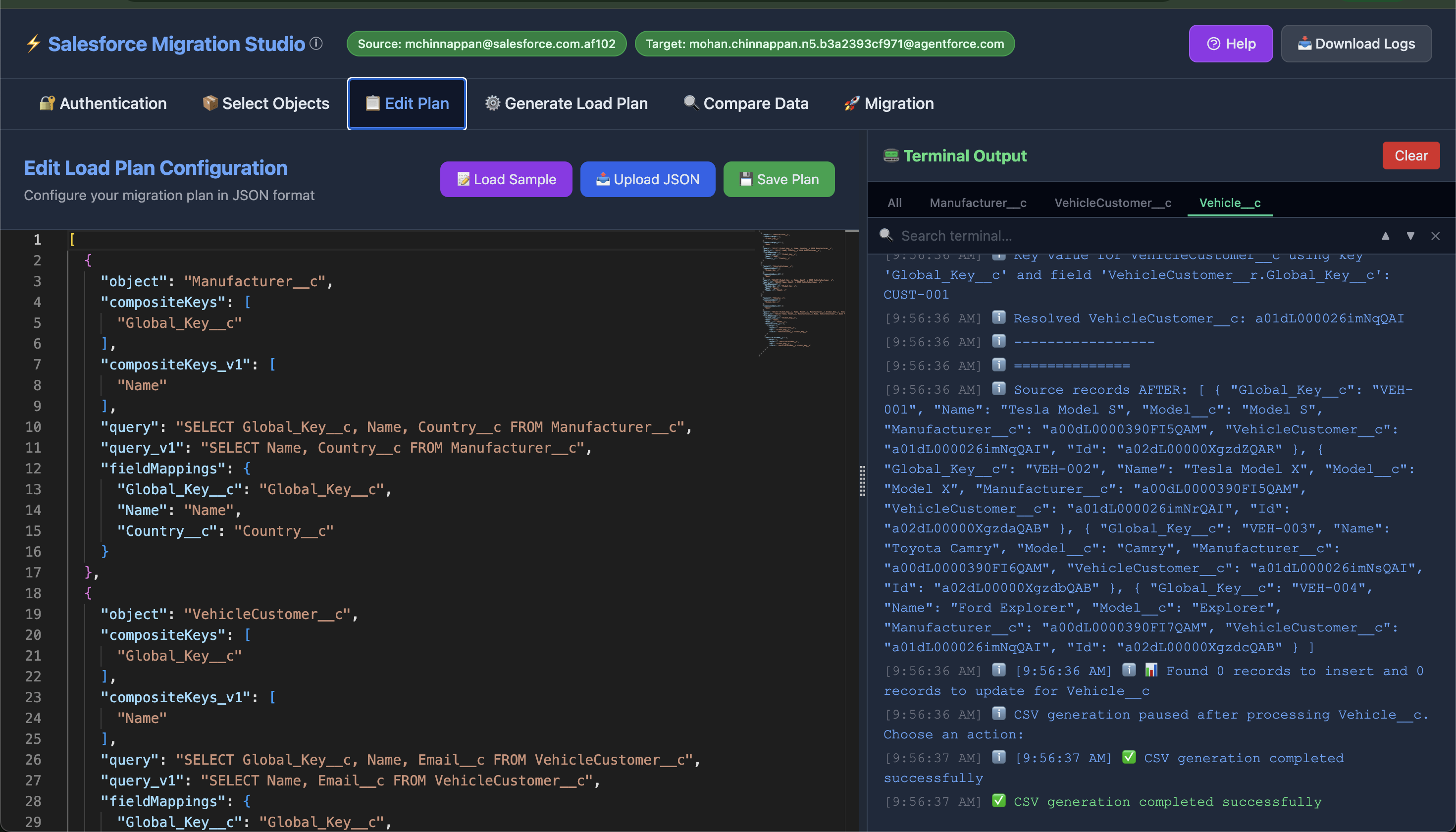

Edit Load Plan

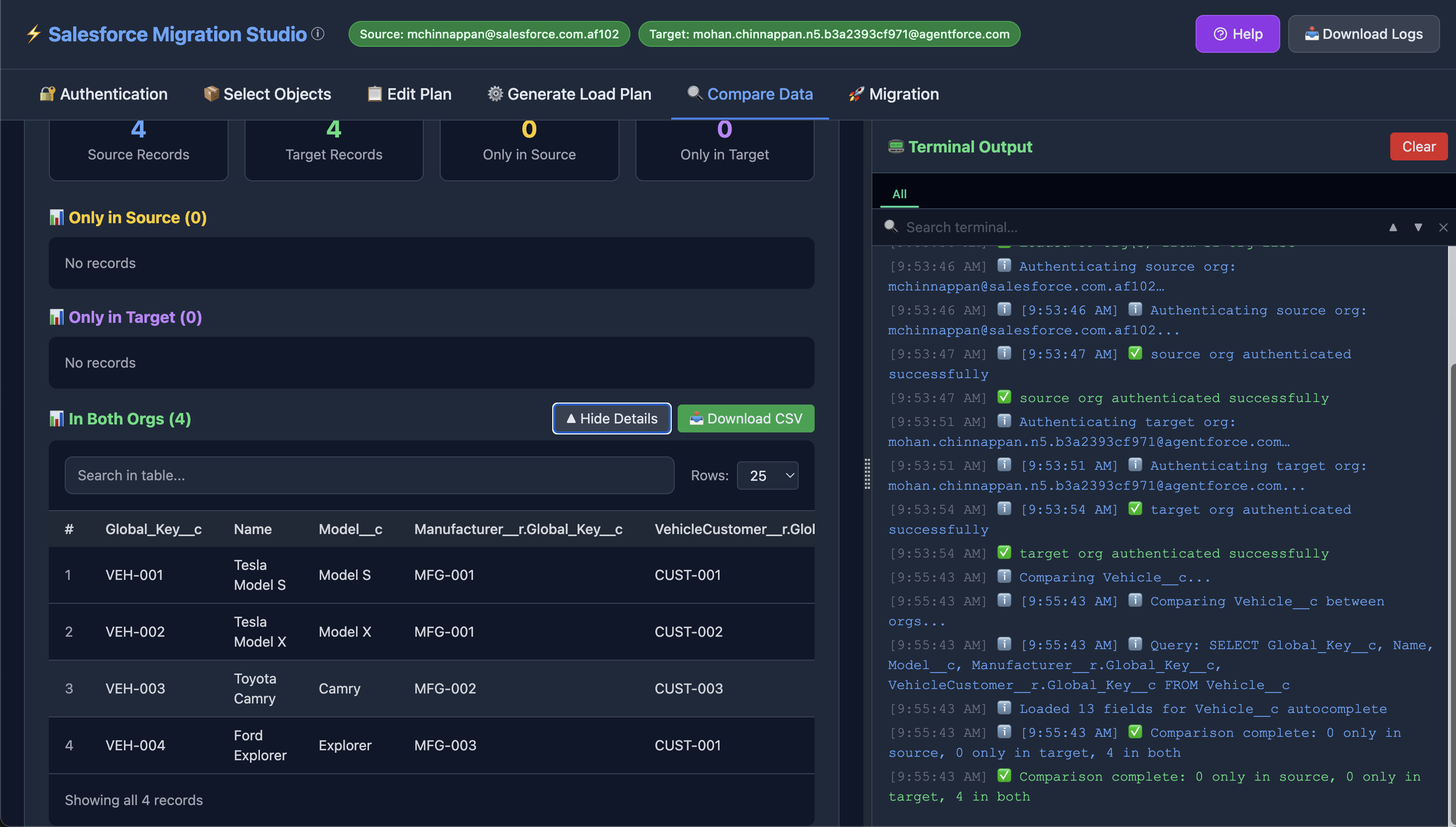

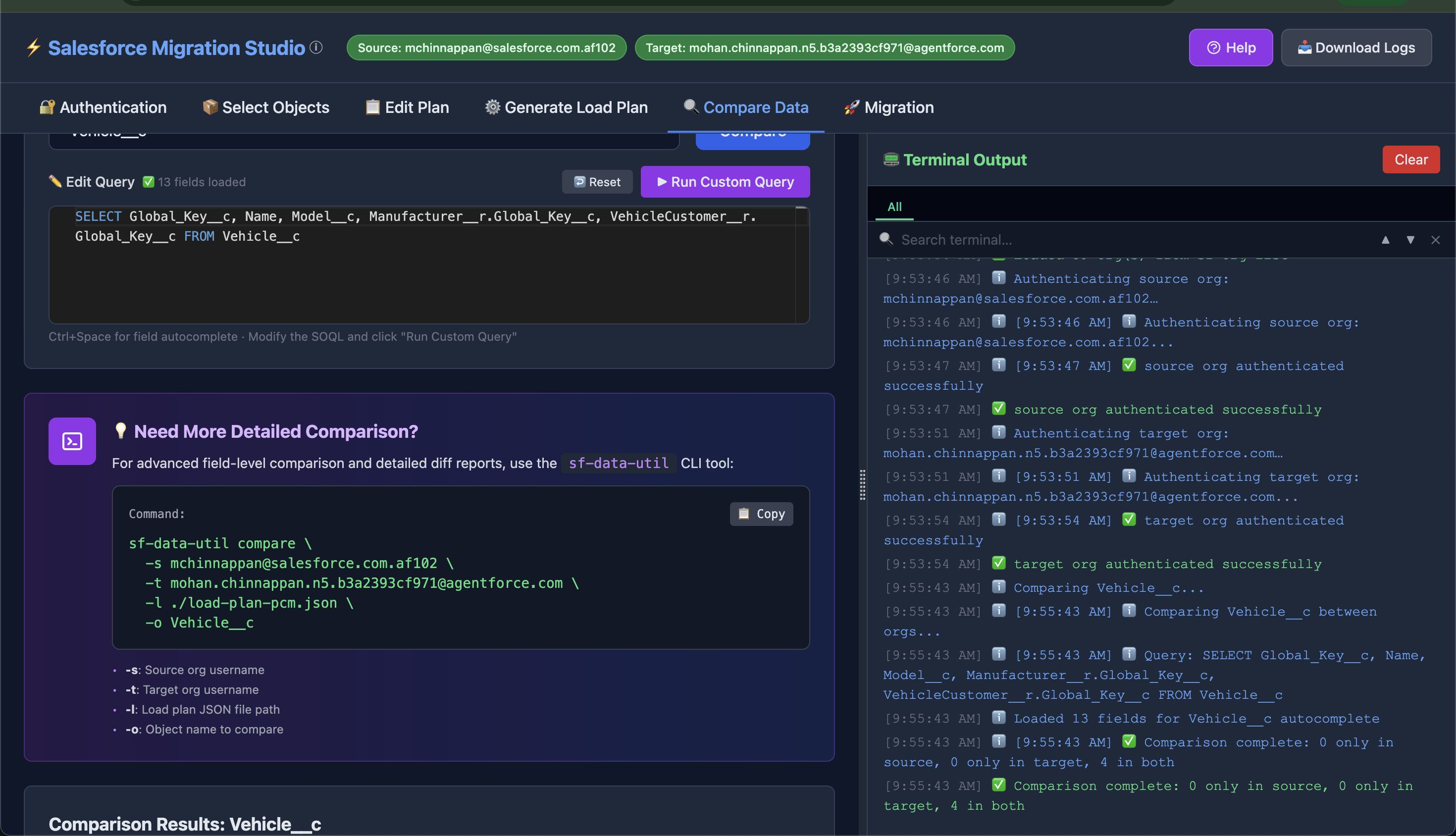

Compare Org Data

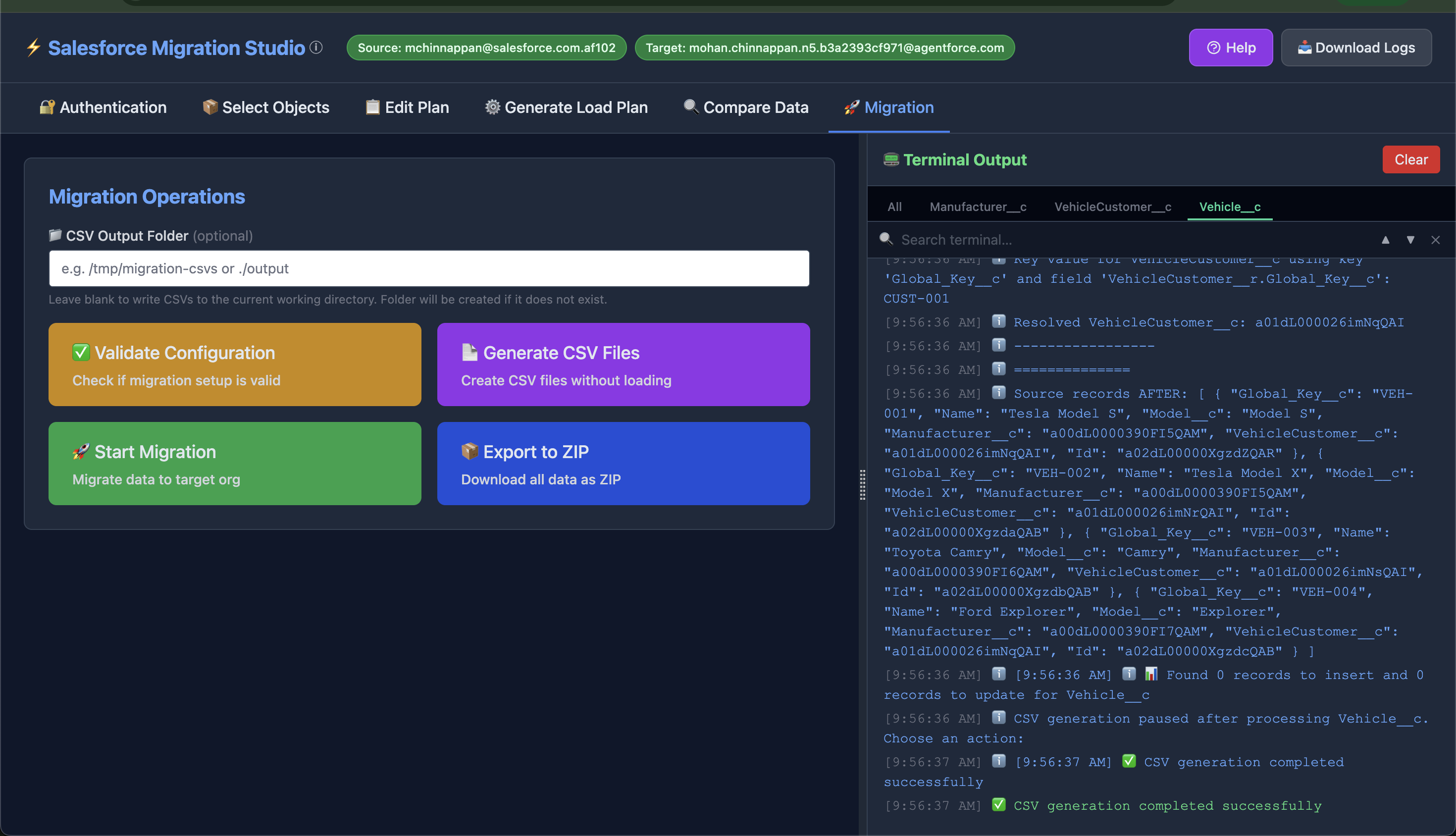

CSV Generation

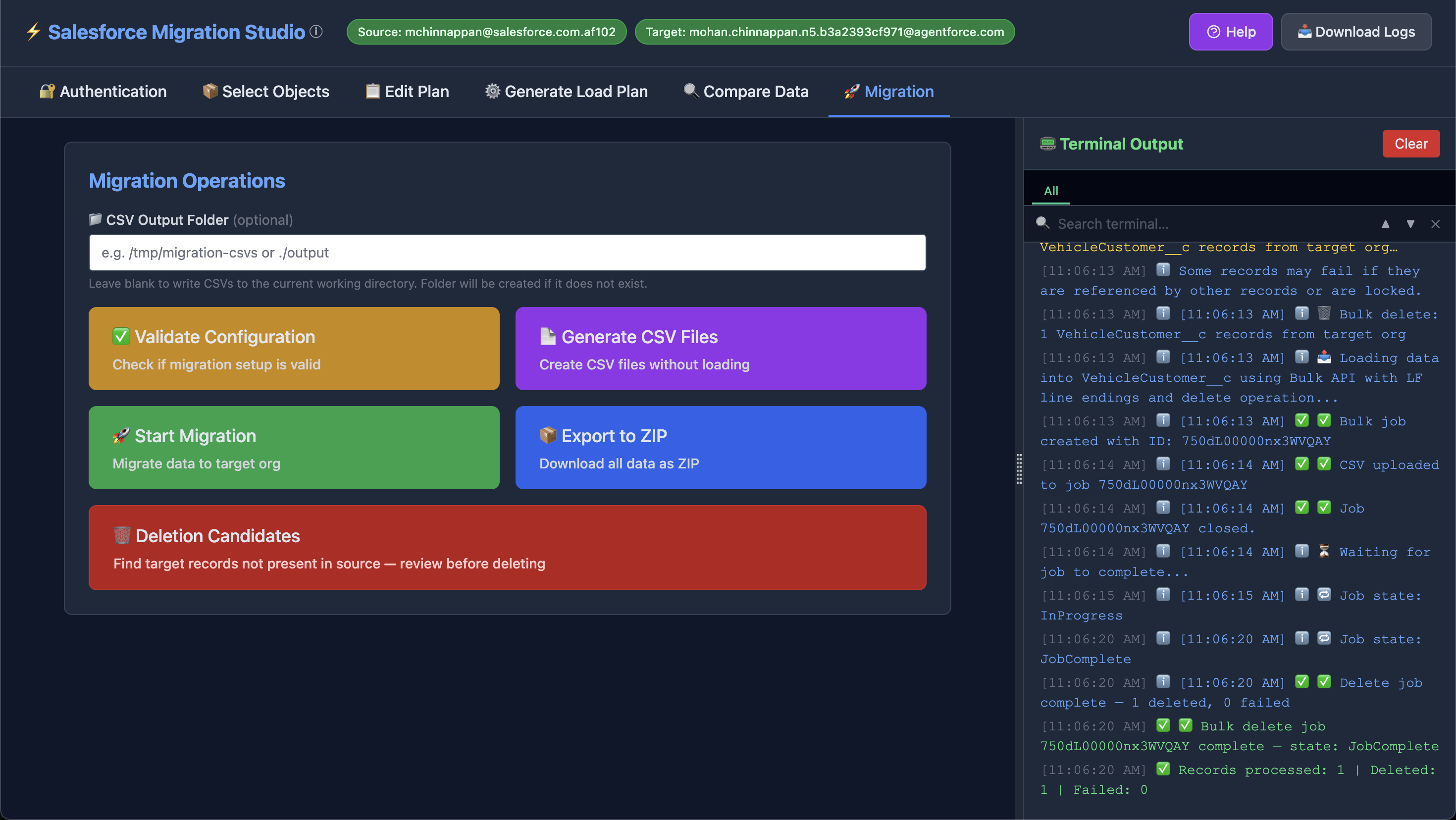

Data Deletion in Target Org

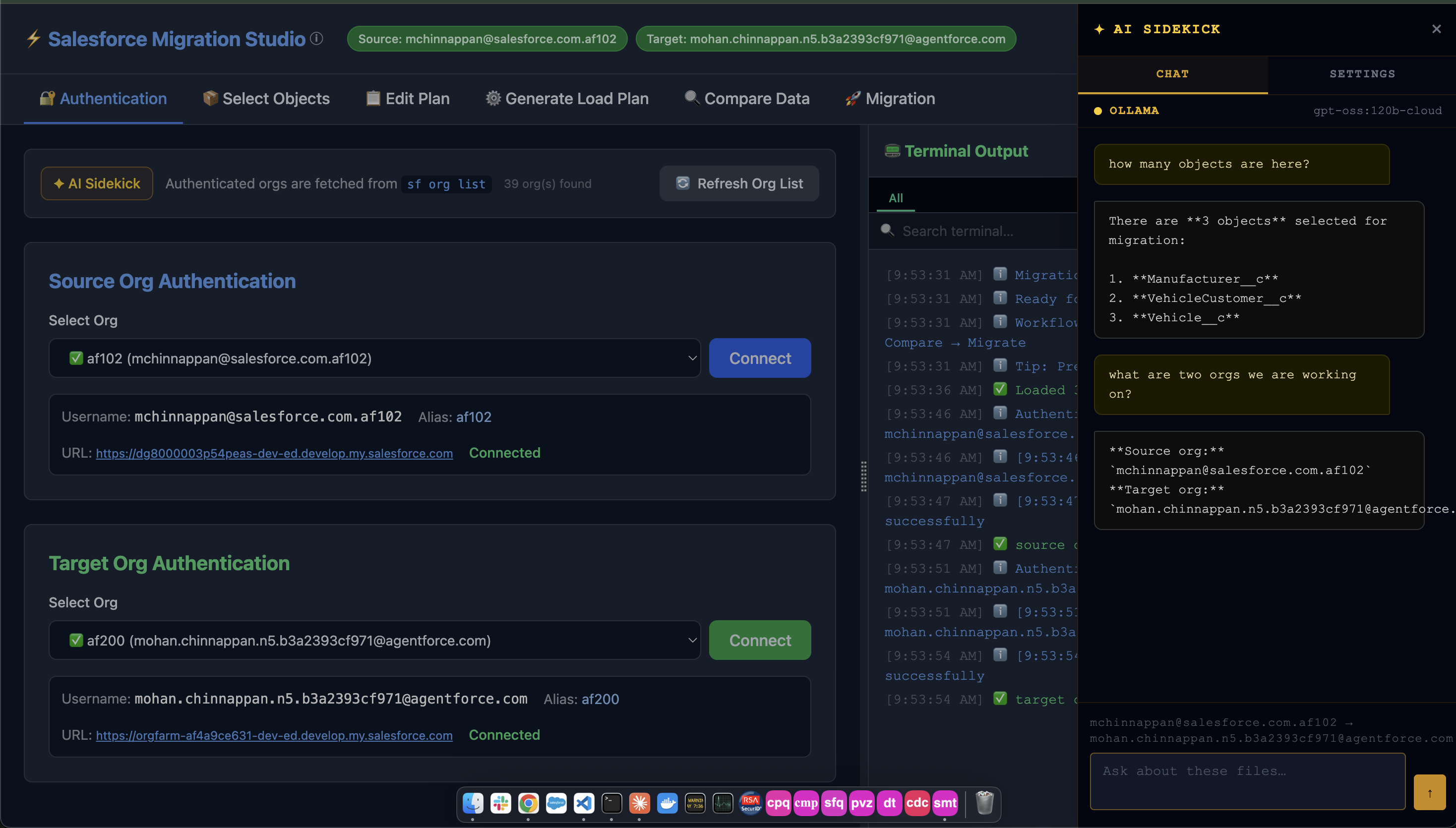

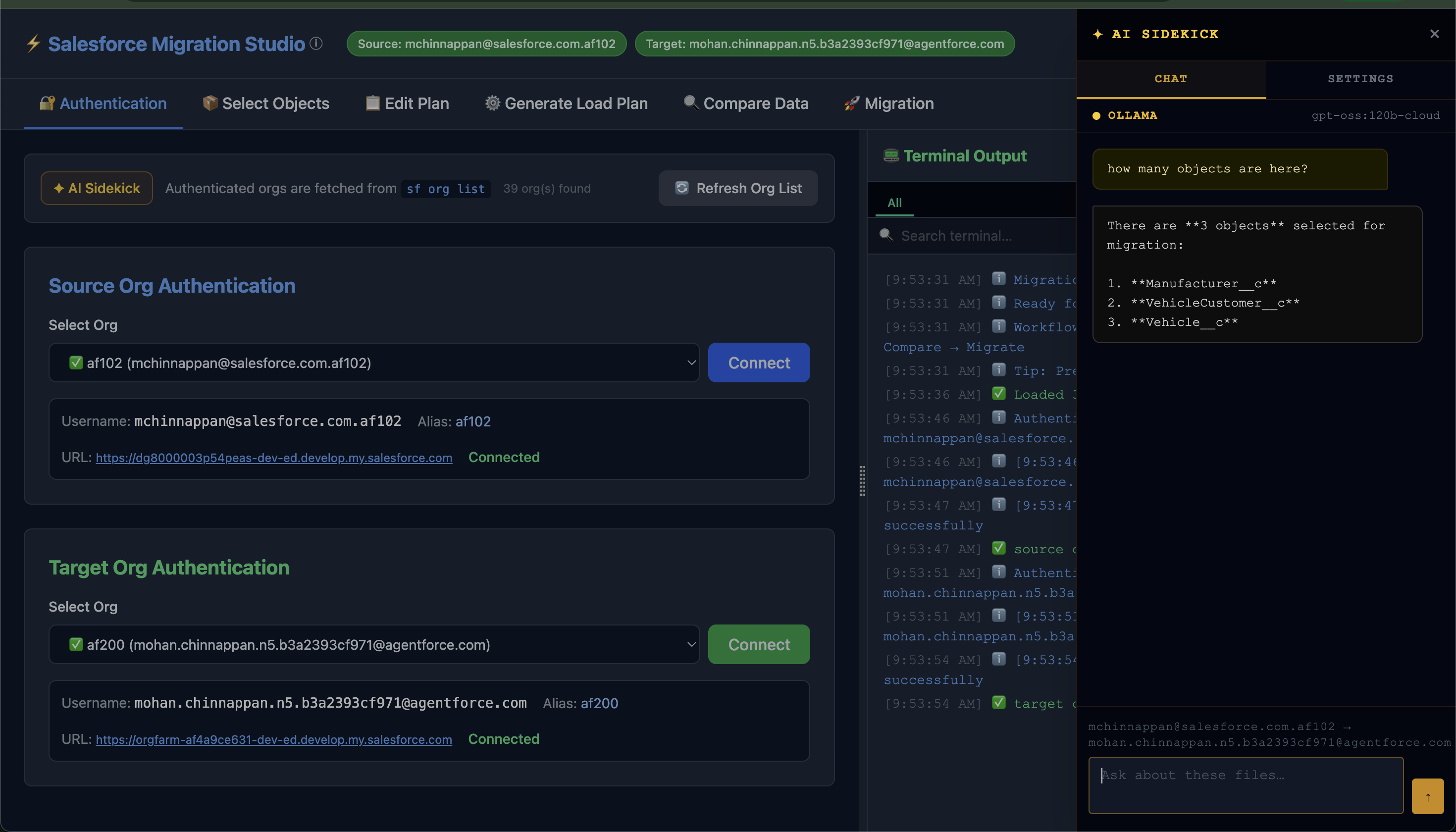

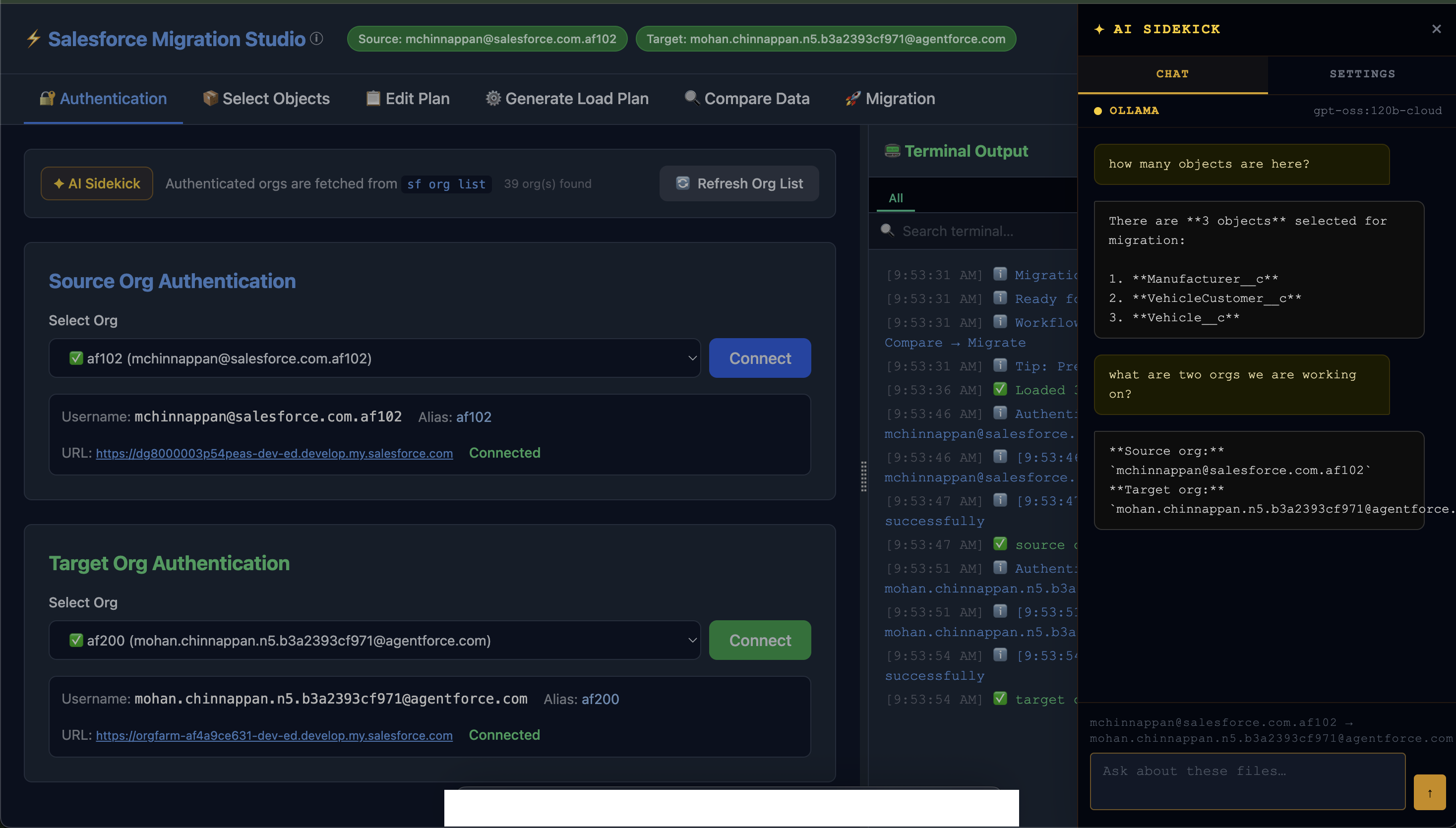

AI SideKick

🌟 Features

🎨 Modern Web Interface

• Dark Theme: Professional dark mode UI built with Tailwind CSS
• Tab-Based Navigation: Organized workflow across 6 main sections
• Split Pane Layout: Resizable Monaco editor on left, real-time terminal on right
• Splash Screen: Animated startup screen loads org list in the background before the app appears
• Custom Dialogs: All confirmation and pause prompts are in-app modals (no browser alert/confirm)

🔐 Authentication

• Authenticate source and target Salesforce orgs via Salesforce CLI (sf)
• Searchable org dropdown: filter by alias or username with live search; orgs grouped by type (Production / Sandbox / Scratch)
• Smart token retrieval: uses sf org auth show-access-token on newer SF CLI versions; automatically falls back to sf org display for older versions
• Token-method badge: green pill shows sf org auth show-access-token (secure); amber pill shows sf org display (legacy) — so you always know which path was used
• Visual connection status card with alias, URL, and connected status

📦 Object Selection

• Search Functionality: Quickly find objects in large load plans (Ctrl+K to focus)
• Bulk Selection: Select All / Deselect All respects the active search filter
• Visual Indicators: Shows single-step vs multi-step objects
• Keyboard Shortcuts: Ctrl+K / Cmd+K to focus search, Escape to clear

📋 Load Plan Management

• Monaco Editor: Full VS Code editing experience with JSON syntax highlighting
• File Upload: Load existing migration plans (.json)
• Sample Plans: Quick-start with pre-built configurations
• Auto-formatting: JSON validation and formatting on paste/type
• Tracked Filename: Server remembers your uploaded filename for CLI command generation

⚙️ Generate Load Plan

Fully in-process — no external binary or CLI tool required. Uses the Salesforce REST API directly via the org's access token.

• Describes any Salesforce object from an authenticated org
• Always generates a Type 1 plan (relationship composite keys, e.g. Parent.Name)
• Generates a Type 2 plan (Global_Key__c as sole composite key) when the object has the field
• Field Summary table — every field listed with type, whether it is in the query/mappings, and exclusion reason (Auto Number, Formula, non-updatable)
• Copy / Download / Load directly into the Edit Plan editor

Options (all optional): | Option | What it does | |---|---| | Ignore OwnerId | Strips OwnerId and Owner.Name from query and field mappings | | Use Global_Key__c | Sets compositeKeys to ["Global_Key__c"]; uses it as lookup key for referenced objects that also have the field | | Global_Key__c != NULL | Appends WHERE Global_Key__c != NULL to the SOQL (requires Use Global_Key__c) |

🔍 Data Comparison

• SOQL Editor: Monaco-powered query editor with field autocomplete (via sf sobject describe)
• Visual Tables: Compare records between source and target orgs
• Advanced Features: Column sorting, search, pagination (10/25/50/100 rows), nested field support
• Four Categories: Only in Source · Only in Target · Value Differences · In Both
• Value Differences: Records present in both orgs where at least one field value differs — diff cells highlighted with → new value (was: old value). Download CSV produces an update-ready file.
• Export: Download any category as CSV
• CLI Helper: Personalized sf-data-util command with your actual credentials

🚀 Migration Operations

• Validate Configuration: Check object/field accessibility before touching data
• Generate CSV Files: Write insert/update CSVs without loading to target. Null source fields are written as #N/A (unquoted) in update CSVs — the Bulk API v2 token to explicitly null a field.
• Start Migration: Full migration with real-time progress; confirms via in-app dialog
• Export to ZIP: Download source + target data as a compressed archive
• Deletion Candidates (requires --allow-delete): Find target records absent from source — one object at a time, paginated table with direct target-org record links, CSV download, and optional Bulk API 2.0 delete with confirmation modal
• CSV Output Folder: Optional path for all generated CSVs and all.zip
• Verbose Logging Toggle: Live switch — equivalent to --verbose, no server restart required
• Per-Object Pause: After each object a modal popup lets you Continue or Stop

📦 Large Volume Support

• SOQL pagination: runSOQLQueryAllRecords follows nextRecordsUrl automatically — handles any record count
• Chunked Bulk uploads: CSV files are split into batches of ≤ 100k rows; each chunk is a separate Bulk API v2 job
• Poll timeout: Bulk job polling times out after 30 minutes with the Job ID for manual lookup
• CSV parser: CLI-path queries use csv-parse with a 256 MB buffer — no crashes on large datasets

📟 Real-time Terminal

• Live logs with color coding: info / success / warning / error
• Per-Object Tabs: A tab is created for each object; auto-switches during runs; "All" tab always available
• Search: Live highlight as you type, navigate matches with ▲▼ or Enter / Shift+Enter, Escape to clear
• Timestamps on every entry
• Download logs as .txt

🧭 Guided Tour

• Launch from the 🧭 Tour button in the header (or from inside the Help panel)
• 9-step spotlight tour covering every feature in workflow order
• Each step highlights the relevant UI element with an indigo ring, auto-switches to the correct tab, and shows a positioned card with title, description, and step counter
• Navigate with Next / Back buttons or ← → arrow keys; Esc exits at any time

❓ Context-Sensitive Help

• Press Help or the ? key on any tab to open the panel pre-loaded with help for that tab
• Tab nav inside the panel lets you jump to any section (Auth / Objects / Plan / Generate / Compare / Migrate / Shortcuts)
• "Guided Tour" button inside the panel launches the tour directly
• Keyboard shortcuts reference always available under the ⌨️ Shortcuts tab

✦ AI Sidekick (opt-in)

• Slide-in panel with CHAT and SETTINGS tabs
• Supports Ollama (local), Claude by Anthropic, OpenAI, xAI (Grok), Google Gemini
• Ollama model list fetched live from /api/tags
• Context-aware system prompt: source org, target org, selected objects, full load plan injected automatically
• Multi-turn conversation history
• Enable with --enable-ai server flag

🚀 Quick Start

Prerequisites

• Node.js v14 or higher
• Salesforce CLI (sf)
• Authenticated Salesforce orgs

Installation

npm install -g smt-studio

📖 Usage Guide

Step 1 — Authenticate Orgs

1. Open the 🔐 Authentication tab
2. Click Refresh Org List — orgs are loaded from sf org list
3. Use the searchable dropdown to select the source org → Connect
4. After connecting, check the token-method badge — green = show-access-token (new CLI), amber = org display (legacy fallback)
5. Repeat for the target org — header badges turn green ✅ when both are connected

Step 2 — Select Objects

1. Open the 📦 Select Objects tab
2. Use the search box (Ctrl+K / Cmd+K), then Select All or pick individually
3. Click Next: Edit Plan →

Step 3 — Configure Load Plan

1. Open the 📋 Edit Plan tab
2. Load a Sample, Upload a JSON file, or use ⚙️ Generate Load Plan to auto-build one
3. Edit in the Monaco editor, then 💾 Save Plan

Step 4 — Generate Load Plan (optional)

1. Open the ⚙️ Generate Load Plan tab
2. Select an org and type/search an object API name
3. Set options as needed: Ignore OwnerId, Use Global_Key__c, Global_Key__c != NULL
4. Click Generate — Type 1 plan always produced; Type 2 produced automatically if the object has Global_Key__c
5. Review the Field Summary table below the editors
6. Click 📥 Load into Editor to send the plan to the Edit Plan tab

Step 5 — Compare Data (recommended)

1. Open the 🔍 Compare Data tab
2. Select an object, optionally edit the SOQL query, click Compare
3. Review the four category tables and download CSVs as needed

Step 6 — Execute Migration

1. Open the 🚀 Migration tab
2. (Optional) Enter a CSV Output Folder — leave blank to use the current working directory
3. Choose an operation:

| Button | What it does | |---|---| | ✅ Validate Configuration | Checks object/field accessibility — no data touched | | 📄 Generate CSV Files | Writes insert/update CSVs (#N/A for null fields), nothing loaded to target | | 🚀 Start Migration | Full migration with confirmation dialog | | 📦 Export to ZIP | Downloads source + target data as all.zip | | 🔍 Verbose Logging | Toggle switch — enables detailed logs live (same as --verbose) | | 🗑️ Deletion Candidates | Visible only with --allow-delete — finds target records absent from source |

4. After each object a Processing Paused popup appears — click ▶ Continue or ⛔ Stop
5. Monitor progress in the terminal; switch per-object tabs or search logs

Deletion Candidates Workflow (requires --allow-delete)

Start server with: smt-studio --allow-delete

1. Click 🗑️ Deletion Candidates on the Migration tab
2. Select one object from the dropdown
3. Click 🔍 Find Candidates
4. Review the table — Id values link directly to the target org record
5. Click 📥 Download CSV to save a backup before taking any action
6. Click 🗑️ Delete from Target → confirm in the modal to trigger a Bulk API 2.0 delete job

AI Sidekick (requires --enable-ai)

1. Start the server with smt-studio --enable-ai
2. Click ✦ AI Sidekick in the top nav
3. Open SETTINGS, pick a provider, enter credentials / select model
4. Switch to CHAT and ask anything about your migration

💻 Command Line Options

smt-studio  --help

# Custom port
smt-studio  --port 8080

# Bind to all interfaces
smt-studio  --host 0.0.0.0

# Default CSV output folder for all operations
smt-studio  --csv-output-folder /tmp/migration-csvs

# Enable AI Sidekick
smt-studio  --enable-ai

# Don't auto-open browser
smt-studio  --no-open

# Verbose logging (detailed field-resolution and query logs)
smt-studio  --verbose

# Enable Deletion Candidates feature and /api/bulk-delete endpoint
smt-studio  --allow-delete

# Combine
smt-studio  -p 8080 --host 0.0.0.0 --csv-output-folder ./output --enable-ai --allow-delete -v

smt-studio  -p 3333 --csv-output-folder ~/my-smt-csv-output --enable-ai --allow-delete

🖥️ Pure CLI Mode (No Web UI)

In addition to the web UI server, smt-studio supports a cli subcommand that runs migration operations directly from the terminal — no browser required.

Syntax

smt-studio cli \
  -s <source-org-username> \
  -t <target-org-username> \
  -l <load-plan.json> \
  [--object <ObjectName | ALL>] \
  -o <gen-csv-file | migrate> \
  [--csv-output-folder <path>] \
  [-v]

Options

| Flag | Required | Description | |---|---|---| | -s, --source <username> | ✅ | Source org username or alias | | -t, --target <username> | ✅ | Target org username or alias | | -l, --load-plan <file> | ✅ | Path to the load-plan JSON file | | --object <name> | | Object to process — use ALL or omit to process every object in the plan | | -o, --operation <op> | ✅ | gen-csv-file — generate CSVs only; migrate — full migration | | --csv-output-folder <path> | | Folder for generated CSV files (auto-created; defaults to current directory) | | -v, --verbose | | Enable detailed field-resolution and query logs |

Examples

# Generate insert/update CSVs for a single object
smt-studio cli \
  -s my-source-org \
  -t my-target-org \
  -l ~/load-plan/vehicle-load-plan.json \
  --object VehicleCustomer__c \
  -o gen-csv-file \
  --csv-output-folder ~/smt-csvs

# Full migration — all objects in the plan
smt-studio cli \
  -s my-source-org \
  -t my-target-org \
  -l ~/load-plan/vehicle-load-plan.json \
  -o migrate

Notes

• Org credentials are resolved via sf org auth show-access-token (new CLI) or sf org display (legacy fallback) — both orgs must be authenticated with the Salesforce CLI before running.
• The per-object Continue / Stop pause dialog is skipped in CLI mode — all selected objects are processed sequentially without interruption.
• Configuration is not persisted to ~/.migrationrc in CLI mode.
• Exit code 0 on success, 1 on any error.

🎯 Sample Load Plan Format

[
  {
    "object": "Manufacturer__c",
    "compositeKeys": ["Global_Key__c"],
    "compositeKeys_v1": ["Name"],
    "query": "SELECT Global_Key__c, Name, Country__c FROM Manufacturer__c",
    "query_v1": "SELECT Name, Country__c FROM Manufacturer__c",
    "fieldMappings": {
      "Global_Key__c": "Global_Key__c",
      "Name": "Name",
      "Country__c": "Country__c"
    }
  },
  {
    "object": "Vehicle__c",
    "compositeKeys": ["Global_Key__c"],
    "compositeKeys_v1": ["Name"],
    "query": "SELECT Global_Key__c, Name, Model__c, Manufacturer__r.Global_Key__c FROM Vehicle__c",
    "query_v1": "SELECT Name, Model__c, Manufacturer__r.Name FROM Vehicle__c",
    "fieldMappings": {
      "Global_Key__c": "Global_Key__c",
      "Name": "Name",
      "Model__c": "Model__c",
      "Manufacturer__c": {
        "lookup": {
          "object": "Manufacturer__c",
          "key": "Global_Key__c",
          "field": "Manufacturer__r.Global_Key__c"
        }
      }
    }
  }
]

🔌 REST API Reference

| Method | Endpoint | Description | |---|---|---| | GET | /api/config | Get current configuration | | PUT | /api/selected-objects | Update selected objects | | POST | /api/auth | Authenticate source or target org | | POST | /api/load-plan | Save load plan JSON | | POST | /api/load-plan/file | Upload plan file (multipart) | | POST | /api/validate | Validate configuration | | POST | /api/migrate | Start migration (csvOutputFolder in body) | | POST | /api/generate-csv | Generate CSV files (csvOutputFolder in body) | | POST | /api/generate-plan-cli | Generate load plan via sf-load-plan-generator CLI | | POST | /api/export | Export data to ZIP (csvOutputFolder in body) | | POST | /api/compare | Compare object data between orgs (returns valueDiff) | | POST | /api/compare/custom | Compare with a custom SOQL query (returns valueDiff) | | POST | /api/deletion-candidates | Records in target not in source for one object | | POST | /api/bulk-delete | Delete Ids from target via Bulk API 2.0 (requires --allow-delete) | | GET | /api/allow-delete | Whether --allow-delete is active | | GET | /api/verbose | Whether verbose logging is active | | POST | /api/verbose | Set verbose logging on/off at runtime | | GET | /api/orgs | List authenticated orgs via sf org list | | GET | /api/sobjects | List SObject API names for an org | | GET | /api/describe/:sobject | Describe a Salesforce object's fields | | GET | /api/download/:filename | Download a generated file | | GET | /api/ai/status | Whether AI Sidekick is enabled | | GET | /api/ai/ollama/tags | Proxy Ollama /api/tags for model list | | POST | /api/ai/chat | Unified AI chat proxy (all providers) |

🔄 WebSocket Events (Socket.IO)

Server → Client

| Event | Payload | When | |---|---|---| | terminal | { timestamp, message } | Any console.log in server process | | object-start | { objectName } | Processing begins for an object (creates terminal tab) | | pause-prompt | { objectName, message, context } | After each object is processed | | migration-complete | { success, error? } | Migration finishes or fails | | csv-generation-complete | { success, error? } | CSV generation finishes or fails | | export-complete | { success, error? } | Export finishes or fails |

Client → Server

| Event | Payload | When | |---|---|---| | pause-response | { action: 'continue' \| 'stop' } | User clicks Continue or Stop in the popup |

🛠️ Configuration Storage

Persisted to ~/.migrationrc:

{
  "sourceConnection": { "instanceUrl": "...", "accessToken": "...", "username": "..." },
  "targetConnection": { "instanceUrl": "...", "accessToken": "...", "username": "..." },
  "loadPlan": [ ... ],
  "selectedObjects": [ "Account", "Contact" ],
  "loadPlanFilename": "my-migration.json"
}

⚠️ Never commit .migrationrc to version control — it contains access tokens.

⌨️ Keyboard Shortcuts

| Shortcut | Where | Action | |---|---|---| | ? | Anywhere (outside input) | Open context-sensitive Help panel | | Ctrl+K / Cmd+K | Select Objects tab | Focus object search | | Escape | Object search | Clear search | | Enter | Terminal search | Next match | | Shift+Enter | Terminal search | Previous match | | Escape | Terminal search | Clear search | | Enter | AI Sidekick chat | Send message | | Shift+Enter | AI Sidekick chat | New line | | Ctrl+Space | Monaco editor | Autocomplete | | Ctrl+F | Monaco editor | Find | | Alt+Shift+F | Monaco editor | Format JSON | | → | Guided tour | Next step | | ← | Guided tour | Previous step | | Escape | Guided tour | End tour |

🔁 CI/CD Integration

The smt-studio cli subcommand is designed to run headlessly — no browser, no interactive prompts, and a clean exit code (0 success / 1 failure).

Prerequisites in the pipeline agent

npm install -g @salesforce/cli
npm install -g smt-studio

# Authenticate orgs using JWT (non-interactive, CI-safe)
sf org login jwt \
  --client-id  $SF_CLIENT_ID \
  --jwt-key-file server.key \
  --username   $SF_SOURCE_USERNAME \
  --alias      source-org

sf org login jwt \
  --client-id  $SF_CLIENT_ID \
  --jwt-key-file server.key \
  --username   $SF_TARGET_USERNAME \
  --alias      target-org

Store SF_CLIENT_ID, SF_SOURCE_USERNAME, SF_TARGET_USERNAME, and the private key as encrypted secrets in your CI platform.

GitHub Actions

name: Salesforce Data Migration
on:
  workflow_dispatch:
    inputs:
      object:
        description: 'Object to migrate (ALL or specific API name)'
        default: 'ALL'
      operation:
        description: 'gen-csv-file | migrate'
        default: 'gen-csv-file'
jobs:
  migrate:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4
      - uses: actions/setup-node@v4
        with: { node-version: '20' }
      - run: npm install -g @salesforce/cli smt-studio
      - run: echo "${{ secrets.SF_JWT_KEY }}" > server.key
      - run: sf org login jwt --client-id ${{ secrets.SF_CLIENT_ID }} --jwt-key-file server.key --username ${{ secrets.SF_SOURCE_USERNAME }} --alias source-org
      - run: sf org login jwt --client-id ${{ secrets.SF_CLIENT_ID }} --jwt-key-file server.key --username ${{ secrets.SF_TARGET_USERNAME }} --alias target-org
      - run: |
          smt-studio cli \
            -s source-org -t target-org \
            -l load-plan/vehicle-load-plan.json \
            --object "${{ github.event.inputs.object }}" \
            -o "${{ github.event.inputs.operation }}" \
            --csv-output-folder ./migration-output
      - uses: actions/upload-artifact@v4
        if: always()
        with:
          name: migration-csvs
          path: migration-output/

CI/CD Best Practices

| Concern | Recommendation | |---|---| | Secrets | Use platform secret stores. Never hardcode usernames or keys. | | JWT auth | Prefer sf org login jwt — non-interactive and works in headless agents. | | Load plan versioning | Commit load-plan/*.json to the repository so migrations are reproducible. | | CSV artifacts | Always upload generated CSVs as build artifacts for auditing. | | Dry-run gate | Run gen-csv-file first; only proceed to migrate after approval. | | Exit codes | smt-studio cli exits 0 on success and 1 on error — use this to fail the pipeline. | | Verbose logs | Add -v for detailed field-resolution logs in the build output. |

🚀 Copado DevOps Integration

smt-studio cli can be embedded into Copado pipelines using Copado Functions or a custom Job Step backed by a self-hosted runner.

See the full Copado integration guide in the previous version of this README or the project wiki.

🔒 Security Notes

1. Local use only by default (localhost binding)
2. Use --host 0.0.0.0 only on trusted networks
3. Access tokens are stored in ~/.migrationrc — protect this file
4. Add .migrationrc to .gitignore
5. AI provider API keys are held in browser memory only — never stored by the server
6. For public-facing deployments, put a reverse proxy with HTTPS in front

🐛 Troubleshooting

Port already in use

smt-studio -p 3001

Salesforce CLI not found

npm install -g @salesforce/cli
sf version

Access token is [REDACTED] / 401 errors

# Newer SF CLI redacts tokens in sf org display.
# smt-studio automatically uses sf org auth show-access-token instead.
# If you still see 401, verify the org is connected:
sf org display -o your-alias

Re-authenticate an org

sf org login web --alias my-org
sf org list

Ollama models not loading in AI Sidekick

curl http://localhost:11434/api/tags
# Then refresh the Base URL field in AI Sidekick Settings

Deletion Candidates button not visible

smt-studio --allow-delete

Update CSV not clearing null fields in target
The CSV must contain #N/A (unquoted) for fields that should be set to null. Salesforce Bulk API v2 treats an empty cell as "leave unchanged". The app writes #N/A automatically — do not open the CSV in a spreadsheet before loading.

AI Sidekick button not visible

smt-studio --enable-ai

📝 Version

Version: 3.0.0
Author: Mohan Chinnappan

📄 License

MIT
