🏭 Software Factory

Give it a GitHub URL. Get a deployed app + PR — orchestrated by SuperPlane.

Your AI coding agent reads the spec, writes the code, deploys a live preview, opens a PR — all visible live in SuperPlane cloud.

Built at SuperPlane Hackathon: Bash Script Funeral /w Render · NYC, June 27 2026

npm → · GitHub → · Quick Start ↓

What it does

Paste a GitHub URL into any AI agent. The Software Factory MCP tools handle the rest — automatically routing everything through SuperPlane cloud so you can watch every stage live:

You:       "Use software-factory tools to build: https://github.com/you/myapp/issues/42"

Pipeline:  fetch_github_spec   → reads issue, auto-triggers SuperPlane pipeline
           [SuperPlane cloud]  → requirement-agent: Claude writes spec + Mermaid diagram
           [SuperPlane cloud]  → implementation-agent: Claude writes code, pushes branch
           [SuperPlane cloud]  → validation-agent: npm test / lint / build
           [SuperPlane cloud]  → render-deploy: live on Render in ~20s
           [SuperPlane cloud]  → pr-agent: opens PR + posts preview comment

You get:   🚀 https://factory-myapp.onrender.com
           🔀 https://github.com/you/myapp/pull/42
           🌐 https://app.superplane.com/canvases/<id>

No extra AI key needed in your agent. Software Factory is the infrastructure layer — SuperPlane + Render + GitHub, wired as 10 MCP tools that auto-orchestrate everything.

🚀 Quick Start

npx software-factory init

Three prompts, then MCP is auto-registered in Claude Code, Codex, and OpenCode.

npx software-factory doctor   # verify all connections

📐 How It Works

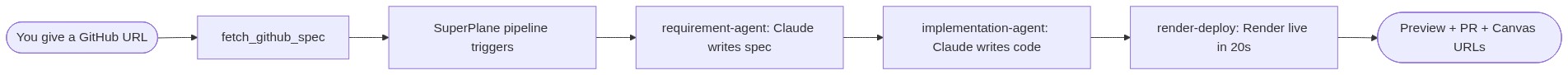

End-to-End Flow

💡 GitHub users: The diagrams below also render interactively as native Mermaid.

flowchart LR
    A(["You give a GitHub URL"]) --> B["fetch_github_spec"]
    B --> C["SuperPlane pipeline triggers"]
    C --> D["requirement-agent: Claude writes spec"]
    D --> E["implementation-agent: Claude writes code"]
    E --> F["render-deploy: Render live in 20s"]
    F --> G(["🚀 Preview + 🔀 PR + 🌐 Canvas URLs"])

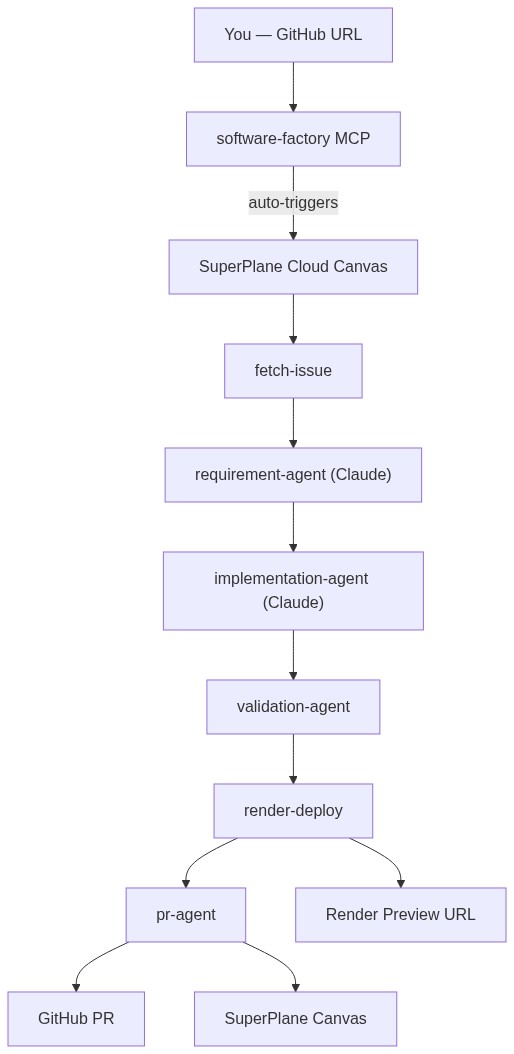

Full Architecture

graph TB
    U["You — GitHub URL"] --> M["software-factory MCP"]
    M --> |"auto-triggers"| SP["SuperPlane Cloud Canvas"]
    SP --> FI["fetch-issue"]
    FI --> RA["requirement-agent (Claude)"]
    RA --> IA["implementation-agent (Claude)"]
    IA --> VA["validation-agent"]
    VA --> RD["render-deploy"]
    RD --> PA["pr-agent"]
    RD --> R1["🚀 Render Preview URL"]
    PA --> R2["🔀 GitHub PR"]
    PA --> R3["🌐 SuperPlane Canvas"]

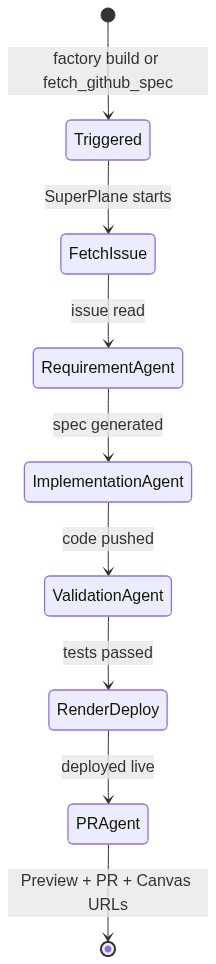

Pipeline Stages

stateDiagram-v2
    [*] --> Triggered : factory build or fetch_github_spec
    Triggered --> FetchIssue : SuperPlane starts
    FetchIssue --> RequirementAgent : issue read
    RequirementAgent --> ImplementationAgent : spec generated
    ImplementationAgent --> ValidationAgent : code pushed
    ValidationAgent --> RenderDeploy : tests passed
    RenderDeploy --> PRAgent : deployed live
    PRAgent --> [*] : Preview + PR + Canvas URLs

Live terminal output when following a build:

⟳ fetch-issue          running...
✔ fetch-issue          3s
⟳ requirement-agent    running...  (Claude writing spec + Mermaid diagram)
✔ requirement-agent    44s
⟳ implementation-agent running...  (Claude writing code + pushing branch)
✔ implementation-agent 2m 18s
⟳ render-deploy        running...
✔ render-deploy        24s
✔ pr-agent             8s

  ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
  ✅  PIPELINE COMPLETE — Share these links:
  ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
  🚀  Preview:    https://factory-myapp.onrender.com
  🔀  PR:         https://github.com/owner/repo/pull/42
  🌐  SuperPlane: https://app.superplane.com/canvases/<id>
  ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

✔ Done in 4m 37s

🔌 SuperPlane & Render — Integration Details

🌌 SuperPlane: Orchestration Engine

SuperPlane is the brain of the factory — it runs the entire pipeline in cloud-hosted, dockerised environments:

| What SuperPlane does | Details | |---|---| | Visual Canvas | Watch every stage run live in the UI — no black box | | Agent Orchestration | Connects Claude Sonnet to bash runners for spec, code, validation | | Secret Vault | Encrypts GitHub Token, Render key, Anthropic key org-wide | | Canvas Auto-Sync | factory init always updates the remote canvas to the latest spec | | Event Triggering | fetch_github_spec → auto-fires pipeline; visible immediately in canvas |

⚡ Render: Instant Preview Hosting

Render provides zero-config, always-on preview environments:

| What Render does | Details | |---|---| | Auto-Provisioning | First build for a repo → creates factory-{repo} static site automatically | | Fast Redeploys | Repeat builds update branch + redeploy in ~20s | | PR Previews | Each PR gets its own factory-{repo}-pr-{N}.onrender.com URL | | Root Mapping | Serves poc/public/ — isolated from the rest of your source | | URL Feedback | Preview URL is returned to SuperPlane, embedded in PR body + issue comment |

🛠 Setup (One Time)

Step 1 — Install & configure

npx software-factory init

You'll be asked for 3 things:

| # | What | Where to get it | |---|------|-----------------| | 1 | SuperPlane API token | app.superplane.com → Profile → API Tokens | | 2 | GitHub personal access token | github.com → Settings → Developer → PATs (repo scope) | | 3 | Render API key | dashboard.render.com/u/settings → API Keys |

No Anthropic key needed in your agent — keys live in SuperPlane's vault and are injected into pipeline nodes automatically.

After entering keys, init automatically:

• Stores all secrets encrypted in SuperPlane
• Creates (or refreshes) the pipeline canvas in SuperPlane
• Registers software-factory in Claude Code (claude mcp add software-factory)
• Writes ~/.mcp.json for Codex / OpenCode / any MCP agent

Step 2 — Verify

npx software-factory doctor

🏥 Software Factory Doctor

  ✔ SuperPlane API    Connected as you
  ✔ Factory Canvas    "software-factory" (a414dc62…)
     🌐 https://app.superplane.com/canvases/a414dc62-...
  ✔ GitHub Token      @yourgithub
  ✔ Render API Key    Render API reachable
  ✔ anthropic-api-key stored
  ✔ github-token      stored
  ✔ render-api-key    stored

  ✅ All systems operational! End-to-end workflow:

  1. Give the agent a GitHub issue/repo URL
  2. fetch_github_spec → auto-triggers SuperPlane pipeline
  3. SuperPlane runs: spec → code → deploy → PR (all visible in cloud)
  4. get_pipeline_status → poll until complete
  5. Report 🚀 Preview URL + 🔀 PR URL + 🌐 Canvas URL to user

🤖 Using with Your AI Agent

Open Claude Code, Codex, or OpenCode (MCP is already registered). Paste this:

Use the software-factory tools to build and deploy this:
https://github.com/owner/repo/issues/42

The URL can be:

| URL type | Example | What happens | |----------|---------|--------------| | Issue | https://github.com/you/myapp/issues/42 | Reads issue → auto-triggers pipeline | | Repo | https://github.com/you/myapp | Reads SPEC.md / README.md → triggers pipeline | | File | https://github.com/you/myapp/blob/main/SPEC.md | Reads that file → triggers pipeline |

The agent always gets back three links when the pipeline finishes:

🚀 Preview:    https://factory-xyz.onrender.com
🔀 PR:         https://github.com/owner/repo/pull/42
🌐 SuperPlane: https://app.superplane.com/canvases/<canvas-id>

🛠 MCP Tools Reference

| Tool | What it does | SuperPlane visible? | |------|-------------|---------------------| | factory_doctor | Verify all connections + show canvas URL | — | | fetch_github_spec | Read spec/issue + auto-trigger pipeline | ✅ triggers all 6 stages | | trigger_autonomous_pipeline | Explicitly trigger full pipeline | ✅ all 6 stages | | get_pipeline_status | Poll progress — returns all 3 URLs when done | ✅ live stage data | | get_repo_structure | List files in a GitHub repo | — | | read_repo_file | Read a specific GitHub file | — | | push_branch | Push code to a new branch (manual fallback) | — | | deploy_preview | Deploy to Render → live HTTPS URL (manual fallback) | — | | get_deploy_status | Poll a specific Render deploy | — | | create_pr | Open PR + comment preview URL on issue (manual fallback) | — |

📋 CLI Reference

# Setup
npx software-factory init              # One-time setup: keys, canvas, MCP registration
npx software-factory doctor            # Verify all connections

# Run the pipeline
npx software-factory build <url>       # Trigger autonomous pipeline
npx software-factory build <url> --follow  # With live stage-by-stage output

# Monitor
npx software-factory status            # Current pipeline run status
npx software-factory status --watch    # Auto-refresh every 10s
npx software-factory logs              # Per-stage execution logs

# MCP server (called by your agent automatically)
npx software-factory mcp

🤝 Agent Setup Details

Claude Code

# Auto-registered by factory init, or manually:
claude mcp add software-factory -- npx software-factory mcp

Codex / OpenCode / Any MCP Agent

~/.mcp.json (written automatically by factory init):

{
  "mcpServers": {
    "software-factory": {
      "command": "npx",
      "args": ["software-factory", "mcp"]
    }
  }
}

🔑 Environment Variables

export SUPERPLANE_TOKEN="TuovNZZl..."      # SuperPlane API token
export GITHUB_TOKEN="ghp_..."             # GitHub personal access token
export RENDER_API_KEY="rnd_..."           # Render API key
export RENDER_SERVICE_ID="srv-..."        # Optional: skip service lookup
export FACTORY_TARGET_REPO="owner/repo"  # Default target repo
export FACTORY_CANVAS_ID="uuid"          # SuperPlane canvas ID

Non-interactive (CI/CD):

npx software-factory init --yes

📁 Codebase

bin/
  factory.js          CLI entrypoint

src/
  mcp/
    server.js         10 MCP tools (JSON-RPC 2.0 stdio)
  commands/
    init.js           setup + MCP auto-register + canvas sync
    doctor.js         health checks
    build.js          autonomous pipeline trigger + --follow watcher
    status.js         pipeline status
    logs.js           execution logs
  superplane/
    client.js         SuperPlane REST client
    canvas-template.js  6-node pipeline definition
  config.js           ~/.factory/config.json

🌟 Demo — Try It Now

# Build a feature from a real SuperPlane issue
npx software-factory build https://github.com/superplanehq/superplane/issues/5368 --follow

# Watch all 6 stages complete in your terminal
# Then open the 3 links: Preview · PR · SuperPlane Canvas

🤝 Contributing

git clone https://github.com/hongchengw/superplane-render-nyc-hack
cd superplane-render-nyc-hack
npm install
node bin/factory.js --help

Built with SuperPlane · Deployed on Render

MIT © Roshan Sharma
