🗄️ SQLite Explorer Pro - CLI Edition

A professional SQLite database explorer with a beautiful dark-themed web UI, built with Node.js, Express, and Tailwind CSS.

✨ Features

🎯 Core Functionality

• Interactive SQL Editor: Write and execute SQL queries with syntax highlighting
• Table Browser: View all tables with expandable schemas
• Schema Viewer: Detailed column information with types and constraints
• Query History: Track and reuse your last 10 queries
• CSV Export: Export query results to CSV files
• Real-time Execution: See execution time and row counts
• Error Handling: Detailed error messages for failed queries

🎨 Beautiful UI

• Modern dark theme using Tailwind CSS
• Responsive three-pane layout with resizable panels
• Smooth animations and transitions
• Toast notifications for user feedback
• Professional color scheme and typography
• Status indicators with real-time updates

🚀 CLI Features

• Commander.js integration for command-line arguments
• Colored terminal output with Chalk
• Auto-open browser option
• Graceful shutdown handling
• Optional database file parameter

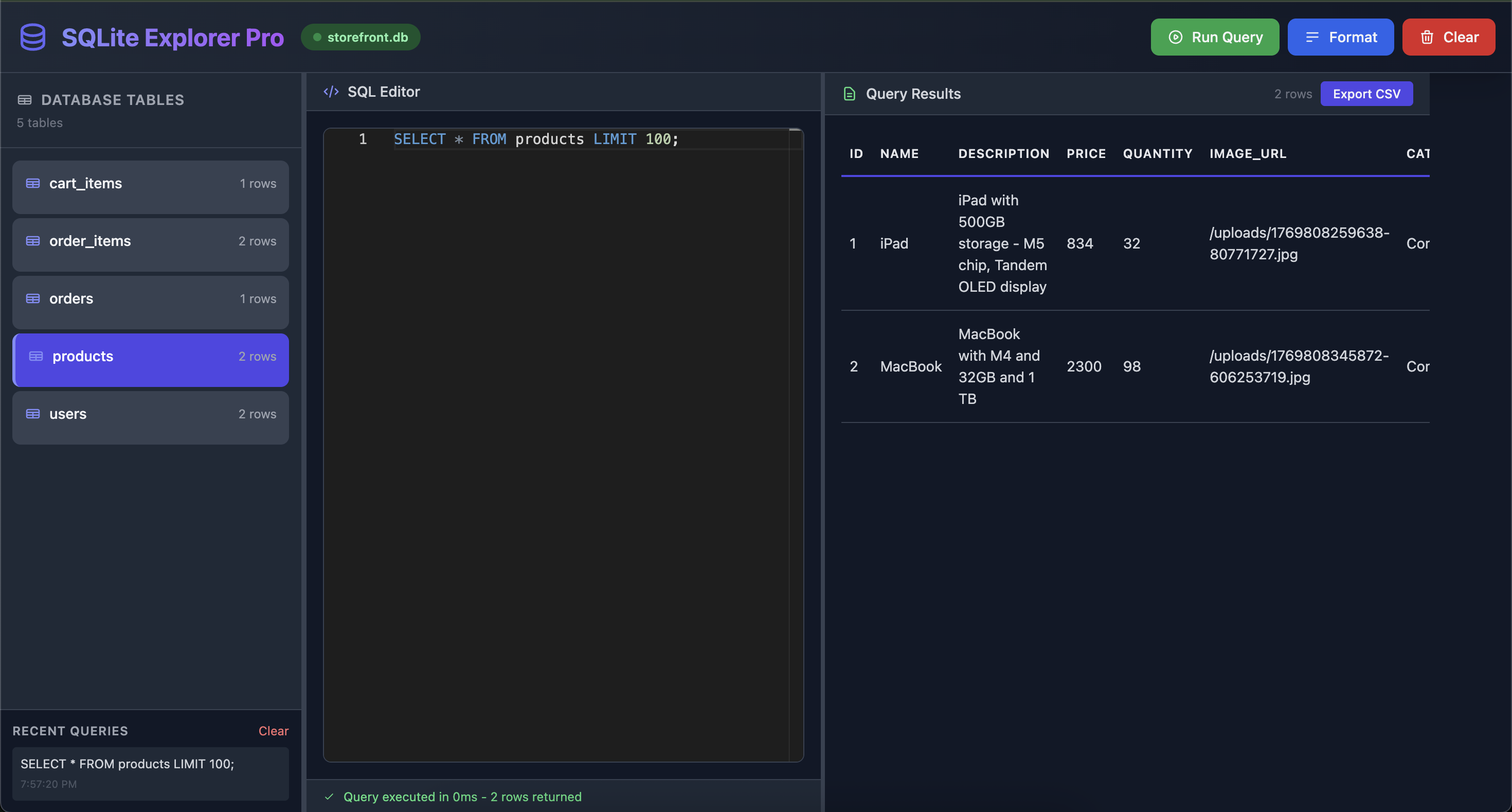

Screenshots

Web Version

SQLite Explorer Pro

📦 Installation

npm install -g sqlite-explorer-cli

🔧 Usage

Open a Specific Database

sqlex path/to/database.db -p 7890

🎮 Keyboard Shortcuts

• Ctrl/Cmd + Enter: Run query
• Escape: Close notifications

🖥️ User Interface

Left Panel - Table Browser

• Lists all tables in the database
• Shows row count for each table
• Expandable schema view with:
  • Column names
  • Data types
  • Primary key indicators
  • Constraints
• Click any table to load a SELECT query

Middle Panel - SQL Editor

• Syntax highlighting
• Multi-line query support
• Auto-formatting option
• Clear button
• Keyboard shortcuts

Right Panel - Results Viewer

• Tabular display of query results
• Scrollable for large datasets
• NULL value highlighting
• Row count display
• CSV export button

Bottom Panel - Query History

• Last 10 queries saved
• Click to restore any query
• Clear history option
• Timestamps for each query

🔌 API Endpoints

The server exposes the following REST API endpoints:

GET /api/info

Get database connection status and metadata

{
  "connected": true,
  "path": "/path/to/database.db",
  "name": "database.db",
  "tableCount": 5,
  "tables": ["users", "products", ...]
}

GET /api/tables

Get all tables with schema information

[
  {
    "name": "users",
    "rowCount": 150,
    "columns": [
      {
        "cid": 0,
        "name": "id",
        "type": "INTEGER",
        "notnull": 1,
        "pk": 1
      },
      ...
    ]
  },
  ...
]

GET /api/tables/:name/schema

Get detailed schema for a specific table

{
  "columns": [...],
  "indexes": [...],
  "foreignKeys": [...]
}

POST /api/query

Execute a SQL query

{
  "sql": "SELECT * FROM users LIMIT 10"
}

Response:

{
  "success": true,
  "result": {
    "type": "select",
    "columns": ["id", "name", "email"],
    "rows": [...],
    "rowCount": 10
  },
  "executionTime": 15.2
}

GET /api/tables/:name/export

Export table as CSV file

🛠️ Technology Stack

• Backend: Node.js + Express.js
• Database: better-sqlite3 (synchronous SQLite)
• CLI: Commander.js
• Terminal: Chalk (colored output)
• Frontend: Vanilla JavaScript + Tailwind CSS
• Browser: Auto-open with 'open' package

🎯 Use Cases

Development

• Quick database inspection during development
• Test SQL queries before implementing in code
• Debug database schema issues
• Explore unfamiliar databases

Data Analysis

• Run ad-hoc queries on SQLite databases
• Export filtered data to CSV
• Analyze table relationships
• Check data integrity

Database Management

• View table structures
• Check row counts
• Inspect indexes and foreign keys
• Execute maintenance queries

🔒 Security Notes

• Read-Only Mode: For production databases, consider implementing read-only mode
• Access Control: No authentication by default - add if exposing to network
• SQL Injection: User input is passed directly to SQLite - use with trusted users
• Local Only: Server binds to localhost by default

💡 Tips & Tricks

1. Table Navigation: Click on any table in the left panel to auto-generate a SELECT query

2. Query Formatting: Use the Format button to clean up messy SQL

3. History: Click any query in the history panel to restore it to the editor

4. Export: Run a SELECT query, then click "Export CSV" to download results

5. Multiple Statements: The editor supports multiple statements, but only the last result is shown

6. NULL Values: NULL values are displayed in italics and gray for easy identification

7. Keyboard Shortcuts: Use Ctrl/Cmd+Enter to quickly run queries

🐛 Troubleshooting

Database won't load

• Check file path is correct
• Ensure file has read permissions
• Verify it's a valid SQLite database

Port already in use

sqlex database.db -p 3001

Browser doesn't open

• Try manually visiting http://localhost:3000
• Or use --no-open flag and copy the URL

Query fails

• Check SQL syntax
• Verify table/column names
• Look at error message in notification

🚀 Future Enhancements

Potential features for future versions:

• [ ] Monaco Editor integration for better syntax highlighting
• [ ] Query auto-completion
• [ ] Save/load query files
• [ ] Database diff viewer
• [ ] ER diagram generator
• [ ] Multi-tab query support
• [ ] Query performance analysis
• [ ] Transaction support
• [ ] Dark/light theme toggle

📄 License

MIT (c) Mohan Chinnappan
