Synapse — Interactive Graph Visualization

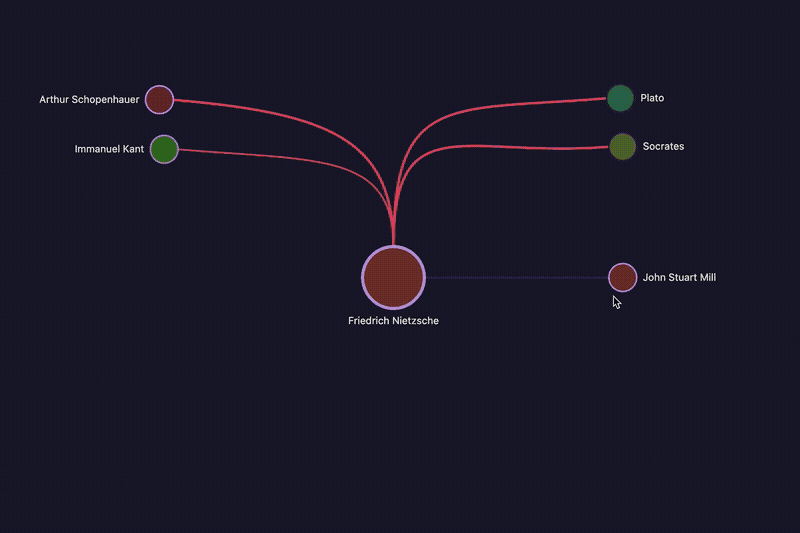

Canvas-based graph navigation tool for exploring relationships between entities. Activate a node and it animates to center with the graph re-laying out around it.

Features

• Animated navigation — activate any node to bring it to center with smooth transitions
• Automatic layout — nodes arrange themselves intelligently in five zones around the active node
• Relationship curves — Bezier curves connect nodes with configurable styles
• Hover interactions — nodes and curves highlight on hover
• Parent-controlled UI — callbacks expose hover, activation, and navigation events without owning your app chrome
• Search helpers — find nodes by label or a custom matcher over your source objects
• HiDPI / Retina ready — crisp rendering on high-density displays
• Zero dependencies — lightweight, tree-shakeable, works in any modern browser
• TypeScript — full type declarations included

Quick Start

Using the library

npm install synapse-graph

import { Cortex, Renderer, InputHandler, loadGraphData } from 'synapse-graph';
import type { GraphData } from 'synapse-graph';

const canvas = document.getElementById('canvas') as HTMLCanvasElement;
const cortex = new Cortex(window.innerWidth / 2, window.innerHeight / 2, {
  onNavigate: ({ previousNode, currentNode, source }) => {
    console.log(`Moved from ${previousNode.label} to ${currentNode.label}`, source);
  },
});
const renderer = new Renderer(canvas);
new InputHandler(cortex, renderer, canvas, {
  onNodeHover: ({ node }) => console.log('Hovered node:', node.source),
  onCurveClick: ({ edges }) => console.log('Activated relationship:', edges[0]?.source),
});

const data: GraphData = { /* your graph data */ };
loadGraphData(cortex, data);

function loop(time: number) {
  cortex.update(0.016);
  renderer.render(
    cortex.centralNode,
    cortex.getChildNodes(),
    cortex.getAllNodeCurves(),
    window.innerWidth,
    window.innerHeight,
  );
  requestAnimationFrame(loop);
}
requestAnimationFrame(loop);

Running the demo app

git clone https://github.com/juliandicks/synapse.git
cd synapse
npm install
npm run dev

Open http://localhost:5173 in your browser.

The demo keeps keyboard behavior in parent code: / focuses search, Escape clears it, Tab and Shift+Tab focus all visible nodes including the center, Enter navigates to the focused node, and [ / ] move through history. The graph canvas sits to the right of the controls and can be resized to exercise embedded layouts.

Data Format

Nodes and edges are provided as plain objects with any domain-specific data:

interface RawNode {
  id: string;
  label: string;
  // Your domain data here
}

interface RawEdge {
  from: string;        // source node id
  to: string;          // target node id
  type: 'child' | 'peer';  // only two edge types supported
  // Your domain data here
}

The graph configuration is wrapped in a GraphData object:

interface GraphData {
  central: string;           // initial central node id
  nodes: RawNode[];
  edges: RawEdge[];
}

Mapping edge types: the library only accepts 'child' and 'peer' edge types. Normalize your domain-specific data before loading so Synapse stays focused on graph display and interaction:

const graphData: GraphData = {
  central: domainData.central,
  nodes: domainData.nodes,
  edges: domainData.edges.map((edge) => ({
    ...edge,
    domainType: edge.type,
    type: edge.type === 'influence' ? 'child' : 'peer',
  })),
};

loadGraphData(cortex, graphData);

API Reference

Cortex

The core graph engine — manages nodes, edges, layout, and animation.

| Method | Description | |--------|-------------| | constructor(centerX, centerY, config?) | Create a new graph centered at given coordinates with optional layout and navigation config | | addGraphNode(id, label, source?) | Add a node with optional source object reference | | addEdge(sourceId, targetId, type, source?) | Add a directed edge with optional source object reference | | navigateTo(id) | Animate to make the given node the new center | | findNodes(query, options?) | Return nodes matching a label search or parent-provided matcher | | loadGraphData(cortex, data) | Bulk-load nodes and edges from a GraphData object | | update(dt) | Step the animation by dt seconds | | resize(centerX, centerY, layout?) | Update center coordinates and optional viewport-aware layout bounds | | setLayoutConfig(layout) | Update responsive layout options without changing the center | | getAllNodes() | Return all nodes | | getChildNodes() | Return all non-central nodes | | getVisibleNodes() | Return nodes currently visible in the active view | | getConnectedNodes(id?) | Return all nodes connected to the given node, defaulting to the center | | getIncomingNodes(id?) | Return incoming child nodes for the given node | | getOutgoingNodes(id?) | Return outgoing child nodes for the given node | | getPeerNodes(id?) | Return peer nodes connected to the given node | | getAllNodeCurves() | Return bezier curves for all visible connections | | hitTest(x, y) | Return the node id at the given canvas coordinates | | removeNode(id) | Remove a node and its edges |

navigateTo accepts an optional source label so parent code can distinguish UI actions:

cortex.navigateTo('kant', { source: 'search' });

findNodes performs a case-insensitive label search by default. Use match when your app wants to search source data that Synapse does not model:

const matches = cortex.findNodes('stoic', {
  limit: 8,
  match: (node, query) => {
    const source = node.source as { tradition?: string };
    return (
      node.label.toLocaleLowerCase().includes(query) ||
      source.tradition?.toLocaleLowerCase().includes(query) === true
    );
  },
});

Renderer

Canvas drawing engine with configurable styles. Style callbacks receive the source objects you provided when adding nodes/edges:

const renderer = new Renderer(canvas, {
  nodeStyle: (source) => ({
    fillColor: (source as MyNode).color,
    strokeColor: '#533483',
    strokeWidth: 2,
  }),
  edgeStyle: (source) => ({
    color: (source as MyEdge).color,
    strokeWidth: 1,
  }),
  hover: {
    color: '#fff',
    strokeWidth: 3,
  },
});

InputHandler

Handles pointer activation and hover events for mouse, touch, and stylus input.

const input = new InputHandler(cortex, renderer, canvas, {
  navigateOnClick: true,
  onNodeClick: ({ node }) => {
    console.log(node.source);
  },
  onNodeHover: ({ node }) => {
    console.log(node.label);
  },
});

input.destroy();

Customization

Node Styling

Supply your own nodeStyle callback to style nodes based on your domain data. The callback receives the source object you provided when adding the node.

Layout

By default, Synapse uses the same fixed layout distances as earlier versions. For embedded canvases or smaller windows, pass viewport bounds so layout offsets and zone spacing can clamp to available space:

function resize() {
  const width = canvas.clientWidth;
  const height = canvas.clientHeight;
  cortex.resize(width / 2, height / 2, {
    width,
    height,
    padding: 32,
    labelWidth: 96,
    minNodeSpacing: 44,
    minHorizontalOffset: 72,
    minRightZoneDistance: 72,
  });
}

You can still tune layout distances explicitly:

cortex.setLayoutConfig({
  horizontalOffset: 240,
  verticalOffset: 160,
  rightZoneDistance: 220,
  nodeVerticalSpacing: 56,
});

When width and height are provided, Synapse squishes horizontal offsets, right-zone distance, vertical offsets, and vertical node spacing toward the configured minimums while keeping visible nodes inside the padded bounds where possible. Horizontal scaling also reserves each child node's radius, label gap, and labelWidth so typical side labels do not clip at the canvas edge.

Examples

See the examples/ directory for example applications:

• examples/philosophy/ — Interactive graph of philosophical influences

Contributing

See CONTRIBUTING.md.

License

MIT
