ts-ecg-webviewer

A framework-agnostic, zero-runtime-dependency ECG web viewer built with TypeScript and the HTML Canvas API.

ts-ecg-webviewer supports buffered asynchronous data loading, smooth playback, timeline navigation, zooming, fullscreen viewing, and PNG snapshots. It can be used from plain TypeScript or integrated into frameworks such as Angular and React.

This package is a visualization component, not a certified medical device.

Features

• TypeScript-first API with bundled declarations
• ESM and CommonJS builds
• No runtime dependencies
• Buffered asynchronous sample loading
• Two ECG leads: I and aVF
• Playback speed control from 0.5x to 5x
• Timeline seeking and mouse-wheel navigation
• Zoom, fullscreen, and PNG export
• High-DPI canvas rendering
• Framework-agnostic lifecycle

Installation

npm install ts-ecg-webviewer

Import the viewer and its stylesheet:

import { TsEcgWebViewer } from "ts-ecg-webviewer";
import "ts-ecg-webviewer/styles.css";

Example applications

Both example applications are available in the source repository. They are not included in the installed npm package.

Clone the code repository and install its dependencies:

git clone https://github.com/lumyslinski/ts-ecg-webviewer.git
cd ts-ecg-webviewer
npm ci

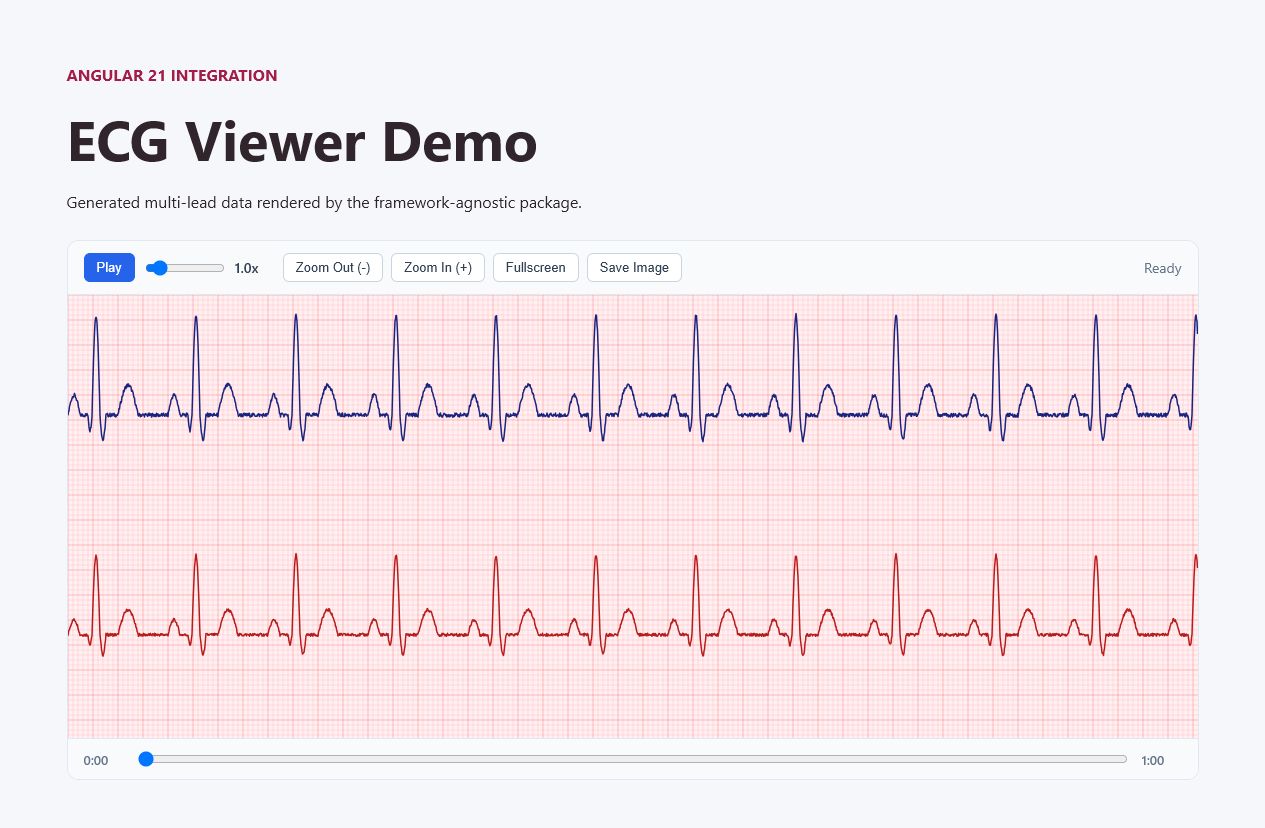

Angular example

Source: examples/angular-demo.

From the cloned repository root, run:

npm run start --workspace=examples/angular-demo

Open http://localhost:4200.

React/Next.js example

Source: examples/react-demo.

From the cloned repository root, create the local environment file:

Copy-Item examples/react-demo/.env.example examples/react-demo/.env.local

On macOS or Linux, use:

cp examples/react-demo/.env.example examples/react-demo/.env.local

Then start the React demo:

npm run dev --workspace=examples/react-demo

Open http://localhost:3000.

The local test account is documented in the React demo README.

Data format

fetchSamples receives a zero-based sample position and requested sample count. It must resolve to:

interface TsEcgWindow {
  startSample: number;
  sampleCount: number;
  leads: {
    I: number[];
    aVF: number[];
  };
}

The returned window may contain additional buffered samples. Overlapping requests should return identical values for the same sample positions to avoid visible discontinuities during playback.

Constructor options

| Option | Type | Description | | -------------- | ------------------------------------------------------ | ------------------------------------- | | sampleRateHz | number | Positive recording sample rate. | | totalSamples | number | Total available sample count. | | durationSec | number | Total recording duration in seconds. | | fetchSamples | (startSample, count) => Promise<TsEcgWindow \| null> | Loads a sample window asynchronously. |

Public API

The package exports:

• TsEcgWebViewer
• TsEcgRenderer
• TsEcgWebViewerOptions
• TsEcgRendererOptions
• TsEcgWindow

Call viewer.destroy() when unmounting to stop animation, disconnect resize observation, and remove generated UI elements.

Framework integrations

The repository contains complete examples:

• Angular demo
• React/Next.js TypeScript demo

Browser support

The viewer requires a modern browser with:

• HTML Canvas 2D
• ResizeObserver
• requestAnimationFrame
• Fullscreen API for the fullscreen control

Links

• Source repository
• Issue tracker
• Author on LinkedIn

License

MIT © 2026 Lukasz Myslinski
