tskb

Build living architecture documentation as code. Declaratively define architectural intent in large TypeScript codebases and monorepos, and turn that intent into a compiler-verified artifact.

Documentation physically bound to your code, so you can trust it.

⚠️ Status

Experimental / early concept.

• APIs and output may evolve
• Not production-ready
• Best viewed as a proof-of-concept and research tool

What is tskb?

tskb is a TypeScript-native DSL for expressing architectural intent as code.

You write documentation in .tskb.tsx files that:

• are type-checked by the TypeScript compiler
• reference real folders, files, and exports
• fail the build when documentation and code drift apart

The result is a structured knowledge graph that can be:

• visualized (Graphviz, diagrams)
• queried programmatically
• consumed efficiently by AI assistants

Refactor your code → stale documentation breaks at compile time.

Why tskb exists

Large TypeScript codebases eventually suffer from:

• Tribal knowledge - architecture lives in senior developers’ heads
• Compound complexity - the mental model becomes fragile and expensive to communicate
• Documentation decay - Markdown and diagrams drift silently

tskb addresses this by making architecture documentation:

• typed
• validated
• enforced at build time

Core features

• Architecture as code using TSX
• Compiler-verified references via typeof import()
• Type-checked code snippets (not copied text)
• Native IDE support (autocomplete, refactoring, go-to-definition)
• Zero runtime impact (pure build-time tooling)
• CLI for querying (ls, describe, select commands)
• JSON knowledge graph output
• Graphviz visualization
• Monorepo-friendly by design
• Optimized for AI assistants & programmatic consumption

Quick start (recommended setup)

0) Install and setup

Install tskb:

npm install --save-dev tskb

Create docs folder with config:

mkdir docs

Repo structure:

your-repo/
├── src/              # Your source code
├── docs/             # Architecture documentation
│   ├── tsconfig.json # TypeScript config for docs
│   └── *.tskb.tsx    # Documentation files
└── package.json      # Add tskb script here

For monorepos: create docs/ at workspace root, and ensure tsconfig.json can resolve all packages you want to document.

1) Configure TypeScript for docs

Create docs/tsconfig.json that can type-check your real code:

{
  "compilerOptions": {
    "target": "esnext",
    "module": "NodeNext",
    "moduleResolution": "NodeNext",

    "strict": true,
    "skipLibCheck": true,
    "forceConsistentCasingInFileNames": true,
    "resolveJsonModule": true,
    "allowJs": true,
    "esModuleInterop": true,

    "jsx": "react-jsx",
    "jsxImportSource": "tskb",

    "baseUrl": "../",
    "rootDir": "../",

    "paths": {
      "@/*": ["src/*"]
    }
  },
  "include": ["**/*.tskb.tsx"]
}

Key settings:

• baseUrl: "../" - Points to repo root so docs can import from src/
• jsxImportSource: "tskb" - Enables TSX syntax for documentation
• moduleResolution: "NodeNext" - Use ESM-style imports with explicit extensions (.js)

2) Add a build script

Add to your root package.json:

{
  "scripts": {
    "docs": "tskb \"./docs/**/*.tskb.tsx\" --tsconfig ./docs/tsconfig.json"
  }
}

Note: tskb <pattern> is shorthand for tskb build <pattern>

Run it from repo root:

npm run docs

This creates a .tskb/ directory in your repo root containing:

• graph.json - the knowledge graph (queryable via CLI)
• graph.dot - Graphviz visualization
• AGENTS.md - auto-generated guidance for AI assistants

Pointing AI assistants to TSKB:

Create CLAUDE.md (for Claude) or .github/copilot-instructions.md (for GitHub Copilot):

**MANDATORY FIRST STEP: Read `.tskb/AGENTS.md` immediately when starting ANY work in this repository**

This repo uses TSKB for semantic architecture mapping. AGENTS.md contains the complete workflow you MUST follow before reading source files or making changes.

**Do not skip this. AGENTS.md prevents reading wrong files and missing architectural constraints.**

Define your vocabulary

Declare architecture primitives using TypeScript declaration merging.

// docs/vocabulary.tskb.tsx
import type { Folder, Export, Term } from "tskb";

declare global {
  namespace tskb {
    interface Folders {
      DataLayer: Folder<{
        desc: "Data access layer with repositories and database logic";
        path: "src/server/database";
      }>;
      ServiceLayer: Folder<{
        desc: "Business logic and application services";
        path: "src/server/services";
      }>;
      APILayer: Folder<{
        desc: "HTTP controllers and route handlers";
        path: "src/server/controllers";
      }>;
    }

    interface Modules {
      AuthServiceModule: Module<{
        desc: "Authentication service module";
        path: typeof import("../src/server/services/auth.service.js");
      }>;
    }

    interface Exports {
      UserRepository: Export<{
        desc: "User data access using repository pattern";
        type: typeof import("../src/server/database/repositories/user.repository.js").UserRepository;
      }>;
      AuthService: Export<{
        desc: "Authentication and authorization business logic";
        type: typeof import("../src/server/services/auth.service.js").AuthService;
      }>;
    }

    interface Terms {
      "repository-pattern": Term<"Repository Pattern for data access abstraction">;
      jwt: Term<"JSON Web Tokens for stateless authentication">;
      "layered-architecture": Term<"Layered architecture pattern (API → Service → Data)">;
    }
  }
}

Write documentation

Reference your global vocabulary to document architecture. Multiple teams can author docs that all use the same shared architectural terms.

// docs/authentication.tskb.tsx
import { Doc, H1, H2, P, Snippet, ref } from "tskb";
import type { AuthService } from "../src/server/services/auth.service.js";
import type { UserRepository } from "../src/server/database/repositories/user.repository.js";
import type { LoginCredentials, AuthResponse } from "../src/shared/types/auth.types.js";

// Reference the global vocabulary
const ServiceLayer = ref as tskb.Folders["ServiceLayer"];
const DataLayer = ref as tskb.Folders["DataLayer"];
const AuthServiceExport = ref as tskb.Exports["AuthService"];
const UserRepositoryExport = ref as tskb.Exports["UserRepository"];
const Jwt = ref as tskb.Terms["jwt"];
const RepositoryPattern = ref as tskb.Terms["repository-pattern"];

export default (
  <Doc>
    <H1>Authentication Architecture</H1>

    <P>
      The {AuthServiceExport} in the {ServiceLayer} handles authentication using {Jwt}. It depends
      on {UserRepositoryExport} in the {DataLayer} following the {RepositoryPattern}.
    </P>

    <H2>Example: Login Flow</H2>

    <Snippet
      code={async () => {
        const authService: AuthService = new AuthService();
        const credentials: LoginCredentials = {
          email: "[email protected]",
          password: "hashedPassword",
        };
        const response: AuthResponse = await authService.login(credentials);
        return response.tokens.accessToken;
      }}
    />
  </Doc>
);

Snippet type checking

<Snippet> is not a string literal.

• Snippet bodies are fully type-checked
• Real types and APIs can be imported
• Broken examples fail the documentation build

// docs/repository-pattern.tskb.tsx
import { Doc, H1, P, Snippet } from "tskb";
import type { UserRepository } from "../src/server/database/repositories/user.repository.js";
import type { User } from "../src/shared/types/user.types.js";
import type { Database } from "../src/server/database/connection.js";

export default (
  <Doc>
    <H1>Repository Pattern Example</H1>

    <P>The UserRepository demonstrates the repository pattern for data access abstraction.</P>

    <Snippet
      code={async () => {
        const db: Database = new Database(config);
        const userRepository: UserRepository = new UserRepository(db);
        const user: User | null = await userRepository.findByEmail("[email protected]");
        return user?.id;
      }}
    />
  </Doc>
);

If the API changes:

❌ Property 'findByEmail' does not exist on type 'UserRepository'.

The snippet is never executed - it is parsed, validated, and stringified.

What tskb produces: a semantic architecture graph

tskb builds a typed, semantic knowledge graph describing your system.

The graph captures:

• Nodes - folders, modules, exports, terms, docs
• Edges - explicit and inferred relationships
• Hierarchy - nested architectural contexts
• Semantics - intent expressed through JSX

This graph is the primary output. Everything else (diagrams, markdown, AI context) is derived from it.

Output schema (high level)

{
  nodes: {
    folders: Record<string, FolderNode>;
    modules: Record<string, ModuleNode>;
    exports: Record<string, ExportNode>;
    terms: Record<string, TermNode>;
    docs: Record<string, DocNode>;
  },
  edges: Array<{
    from: string;
    to: string;
    type: "references" | "contains" | "belongs-to";
  }>,
  metadata: {
    generatedAt: string;
    version: string;
    stats: {
      folders: number;
      modules: number;
      exports: number;
      terms: number;
      docs: number;
      edges: number;
    };
  }
}

The schema is intentionally graph-first and machine-oriented.

Nested contexts

Folders define architectural contexts, not just paths.

From folder paths, tskb infers:

• hierarchical containment (contains)
• ownership of modules and exports (belongs-to)
• the most specific enclosing context

Your architecture becomes a tree of nested contexts, not a flat list.

Relations

Relations in the graph come from two sources:

Explicit intent

When you reference entities in JSX:

<P>Authentication is handled by {AuthService}.</P>

tskb records a semantic edge:

Doc → AuthService (references)

Inferred structure

From filesystem paths and imports:

• Folder → Folder (contains)
• Module → Folder (belongs-to)
• Export → Module (belongs-to)

The graph combines authored intent with structural truth.

Why JSX: semantics, not rendering

JSX in tskb is not about UI.

It is a semantic DSL that allows you to declare meaning in a structured, type-safe way. Each JSX element becomes semantic data - not HTML.

JSX provides composability, static analysis, and extensibility without inventing a new syntax.

Defining semantics with JSX

Because JSX is just TypeScript, it can evolve into richer semantics:

<Relation from={AuthService} to={UserRepository} type="depends-on" />

<Constraint kind="layering">
  <Layer name="ui" cannotImport="data" />
</Constraint>

<Flow>
  <Step component={LoginForm} />
  <Step component={AuthService} />
  <Step component={UserRepository} />
</Flow>

These are semantic primitives that compile into graph structure - not UI components.

Example real output

This is the actual CLI output users will see:

tskb build
   Pattern: **/*.tskb.tsx
   Tsconfig: tsconfig.json

Found 19 documentation files
Creating TypeScript program...
Extracting registry (Folders, Modules, Terms)...
   Base directory: /home/user/project
   ├─ 27 folders
   │  └─ Paths: 27 valid, 0 missing
   ├─ 18 modules
   │  └─ Imports: 18 valid, 0 missing
   └─ 30 terms
Extracting documentation...
└─ 11 docs
Building knowledge graph...
   ├─ 28 folder nodes
   ├─ 18 module nodes
   ├─ 48 export nodes
   ├─ 30 term nodes
   ├─ 11 doc nodes
   └─ 201 edges
Creating output directory: /home/user/project/.tskb
Writing graph to /home/user/project/.tskb/graph.json...
Generating visualization: /home/user/project/.tskb/graph.dot...
Writing agent guide: /home/user/project/.tskb/AGENTS.md...

✓ Done!

Output directory: .tskb/
   ├─ graph.json     Knowledge graph data
   ├─ graph.dot      Graphviz visualization
   └─ AGENTS.md      Agent guidance

Visualize with: dot -Tpng .tskb/graph.dot -o .tskb/graph.png

Querying the graph

Once built, query the knowledge graph using the CLI:

List folder structure

npx tskb ls              # List top-level folders (depth=1)
npx tskb ls --depth 4    # List folders up to depth 4
npx tskb ls --depth -1   # List all folders (unlimited depth)

Output is ordered by depth (root → children), making it easy to understand hierarchy.

Describe a folder

npx tskb describe "ServiceLayer"

Returns:

• The folder's context (description, path)
• Parent folder
• Child folders and modules
• Exports belonging to this folder
• Documentation referencing this folder

Search for items

npx tskb select "auth" "ServiceLayer"              # Search within ServiceLayer
npx tskb select "auth" "__TSKB.REPO.ROOT__" --verbose  # Search entire repo

Returns the best match with:

• Confidence score
• Parent/child relationships
• Related documentation
• Relevant file paths

All commands output JSON, making them ideal for programmatic consumption and AI assistants.

Visualize

The build command automatically generates a Graphviz DOT file in .tskb/graph.dot.

To render it as an image:

dot -Tpng .tskb/graph.dot -o .tskb/graph.png

Or view it interactively:

xdot .tskb/graph.dot

Workflow integration

Pre-commit hook

Validate docs on every commit:

npm install --save-dev husky
npx husky init
echo "npm run docs" > .husky/pre-commit

CI/CD (GitHub Actions)

- name: Validate architecture docs
  run: npm run docs

- name: Upload graph artifact
  uses: actions/upload-artifact@v3
  with:
    name: architecture-graph
    path: .tskb/

This ensures documentation stays synchronized with code changes.

AI assistant integration

TSKB is designed to help AI assistants understand codebases efficiently:

• Structured queries: AI can use ls, describe, and select to navigate architecture
• JSON output: Machine-readable format optimized for programmatic consumption
• AGENTS.md: Auto-generated guidance file explaining how to use TSKB commands
• Semantic graph: Relationships between folders, modules, and exports are explicit
• Type-safe references: AI can trust that referenced paths and imports are valid

Instead of blindly exploring files, AI assistants can:

1. Use ls --depth 4 to understand high-level structure
2. Use describe to dive into specific areas
3. Use select to find relevant code for a task
4. Read only the files that matter

This dramatically reduces tokens spent on exploration and increases accuracy.

How is this different?

vs ADRs / Markdown docs: Type-checked and validated against real code, not just text files that drift.

vs Structurizr / C4 / PlantUML: Native TypeScript (not a custom DSL), produces a queryable knowledge graph (not just static diagrams).

vs TypeDoc: Documents architecture and intent (why components exist, how they relate), not just API surfaces (what methods exist).

Unique to tskb:

• Type-checks architecture docs at compile time
• Validates against actual code via typeof import()
• CLI for querying the graph (no file scanning needed)
• Documents whole systems (multiple packages, monorepos)
• Type-checked code snippets (not string literals)
• Optimized for AI assistants with structured queries

Roadmap

• Enhanced graph querying & filtering
• Architectural constraints validation

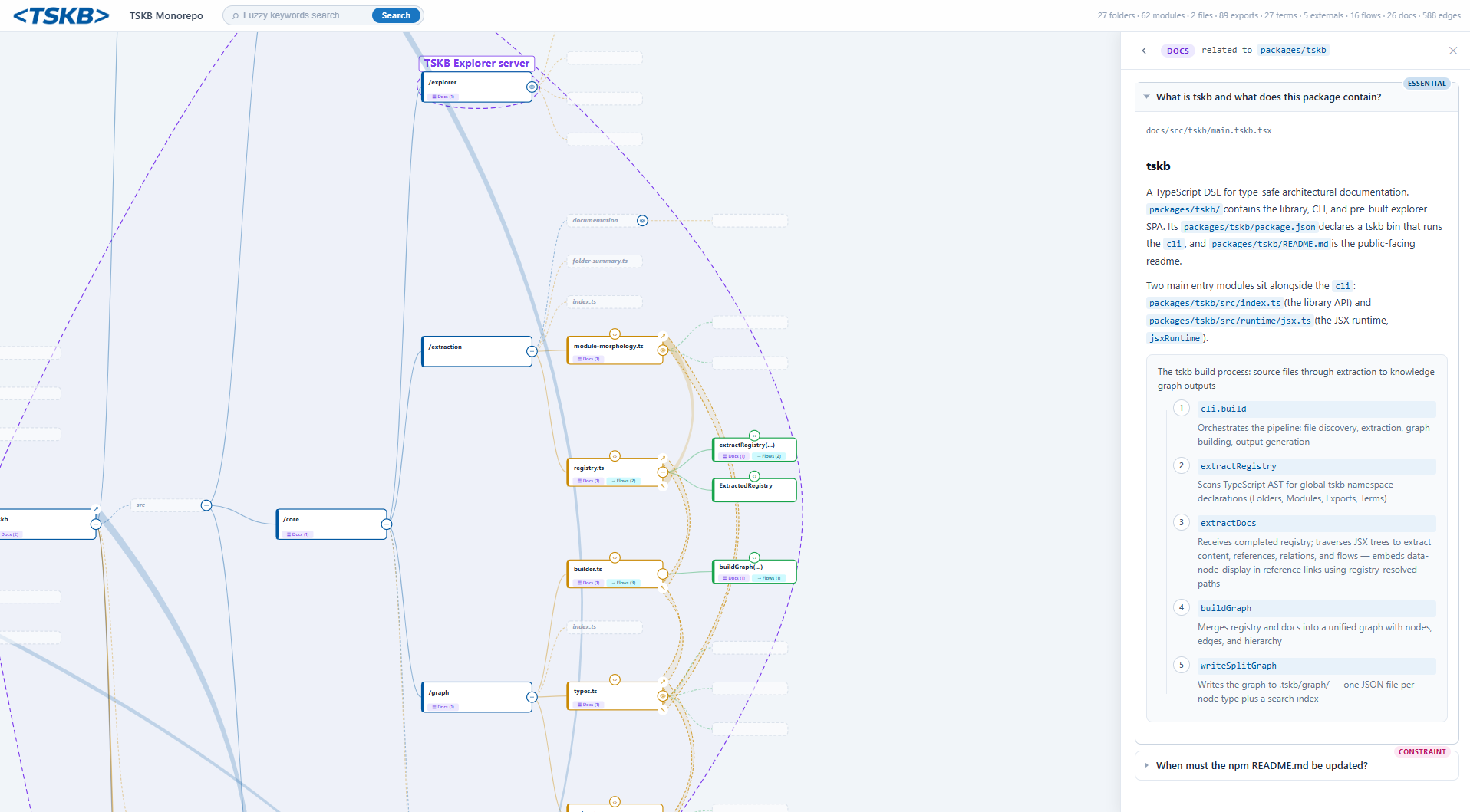

• Interactive visualization (beyond Graphviz)
• Plugin system for custom node types
• Integration helpers (pre-commit hooks, CI templates)

License

MIT © Dimitar Mihaylov
