xgis-bdgrid

xgis-bdgrid基础库

北斗网格位置码编码与计算的基础库

基于beidou-grid-location-codec库的进行定制修改与扩展，实现北斗网格位置码（GB/T 39409-2020）标准，用于2D/3D北斗网格编码、解码和剖分计算。（目前基于网格的空间计算功能正在内部测试完善中……）

• v0.1.0 修改高度边界计算层级问题（例如：1层的顶是2层的底，应属于2层）;
• v0.0.9 修改层级计算错误（应该向上取整），修改其他小问题;
• ~~v0.0.8 修改发现的内部bug;增加相邻关系判断;~~
• ~~v0.0.7 新增部分方法;增加内部基础常量导出;~~
• ~~v0.0.6 重构代码分组和方法命名，空间编码(bdgrid_2d_和 bdgrid_3d_) 、空间运算(spatial_2d_和 spatial_3d_)、高度编码(bdgrid_elevation_);~~
• ~~v0.0.5 解决内部bug;增加临近网格计算；~~
• ~~v0.0.4 解决0.0.3版本存在的问题。~~
• ~~v0.0.3 增加基于北斗编码的空间运算引擎。~~
• ~~v0.0.2 修改功能BUG，补充新功能。~~
• ~~v0.0.1 初始版本，包括网格编码、解码和剖分计算。~~

主要功能:

• 二维网格（含极坐标）编码、解码、参考短码、短码还原、最大级别、临近网格等

• 三维网格编码、解码，高程编码、解码，临近网格

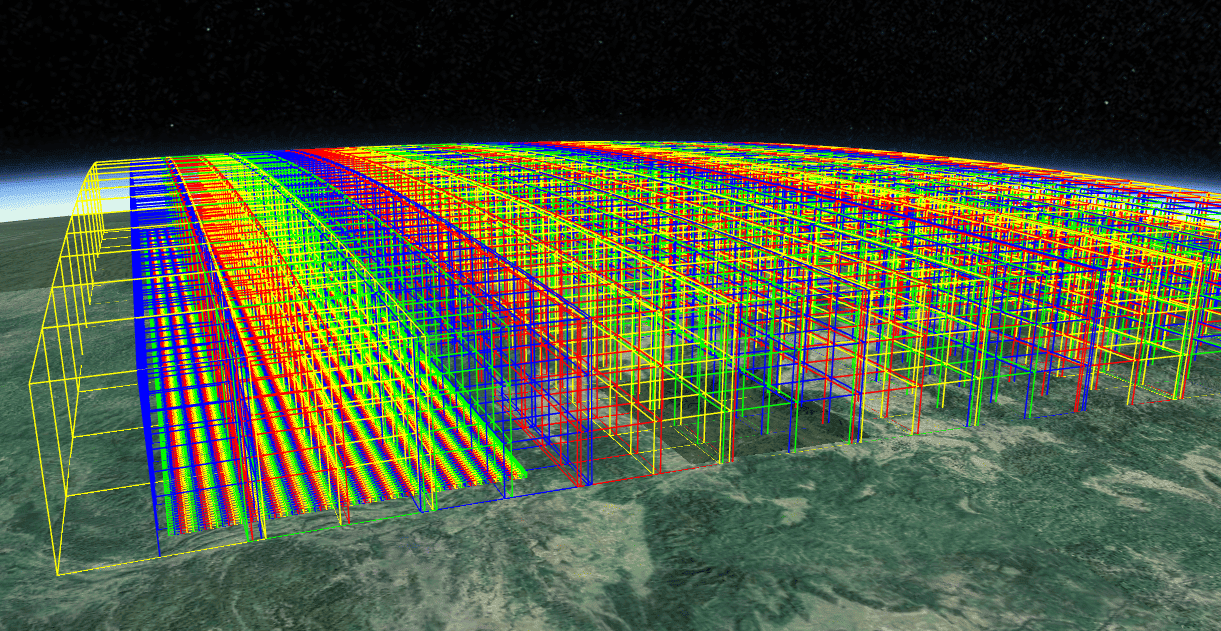

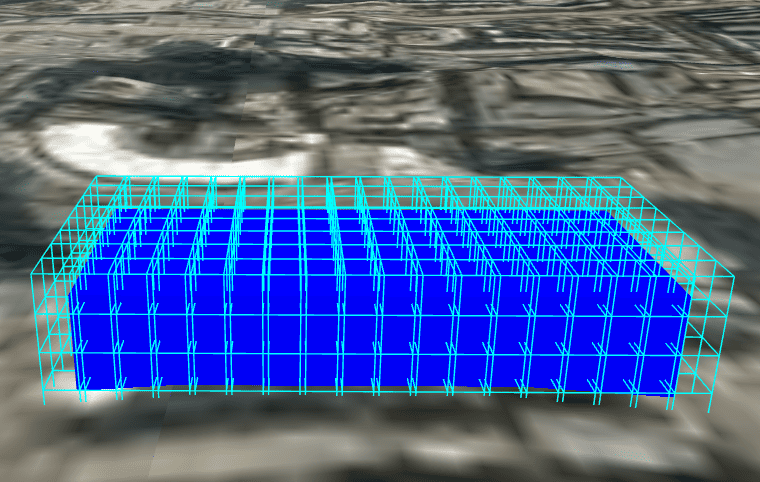

• 三维网格剖分

使用

pnpm add xgis-bdgrid

or

npm i xgis-bdgrid

import type { IGrid3DMeta } from "xgis-bdgrid";
import { Cesium, GroundPrimitiveLayer } from 'xgis-cesium';
import {
computeGrid3DMeshMeta,
createGridBoxOptions,
getAboveFitLevel,
getArcLengthByLevel,
getGrid2DExtent,
getBoxCenter,
getElevationByLevel,
getGrid3DMeshMeta,
getGridBox,
getGridBoxByMeta,
getGridBoxList,
getGridGeoExtent,
getHeightUnitByLevel,
getLevelAngleRad,
getN,
getNMax,
getRadiusByLevel,
intGrid3DMeshMeta,
searchGrid3DMeta,
getLevelByXRange,
}
from 'xgis-bdgrid';

//初始化代码
    intGrid3DMeshMeta();
    console.log('0000000000加载了widget:  TestBD3DGridWidget');
    const viewer = Global.CesiumViewer;
    if (viewer) {
        const gridPrimitiveLayer = new GroundPrimitiveLayer('testGrid');
        viewer.addLayer(gridPrimitiveLayer);
        console.log('添加了图层，开始构建网格要素')
        testInit2(gridPrimitiveLayer.delegate);
    }

async function testInit2(primitiveCollection: Cesium.PrimitiveCollection) {
    const colorGroup = ['#f00', '#ff0', '#0f0', '#00f'];
    for (let level = 1; level <=3; level++) {
        const  colorString = colorGroup[level - 1];

       const gridBoxOptions= createGridBoxOptions(geoExtent,level);

       console.log(level,gridBoxOptions);
       const len=gridBoxOptions.length;
       for(let i=0;i<len;i++)
       {
        const gridBoxOption=gridBoxOptions[i];
        if(gridBoxOption)
          drawGridBoxOutline(gridBoxOption, primitiveCollection, colorString);
       }
        console.log('完成网格构建，层级：' + level);
    }
}

function drawGridBoxOutline(gridParam: any, primitiveCollection: Cesium.PrimitiveCollection, colorString: string = '#0f0') {
    const center = gridParam.center;
    const dimens = gridParam.dimensions;

    const position = Cesium.Cartesian3.fromDegrees(center[0], center[1], center[2]);
    const dimensions = new Cesium.Cartesian3(dimens[0], dimens[1],dimens[2]);

    // BoxOutlineGeometry：创建仅轮廓的长方体
    const boxOutlineGeometry = Cesium.BoxOutlineGeometry.fromDimensions({
        dimensions: dimensions,
    });
    const boxOutlineInstance = new Cesium.GeometryInstance({
        geometry: boxOutlineGeometry,
        modelMatrix: Cesium.Transforms.eastNorthUpToFixedFrame(position),
        attributes: {
        color: Cesium.ColorGeometryInstanceAttribute.fromColor(Cesium.Color.fromCssColorString(colorString))
    }
    });
const appearance = new Cesium.PerInstanceColorAppearance({
    flat: true,
    translucent: false
});
    // 轮廓长方体用 LineAppearance（仅渲染线）
    const boxOutlinePrimitive = new Cesium.Primitive({
        geometryInstances: boxOutlineInstance,
        appearance,
    });
    primitiveCollection.add(boxOutlinePrimitive);

}

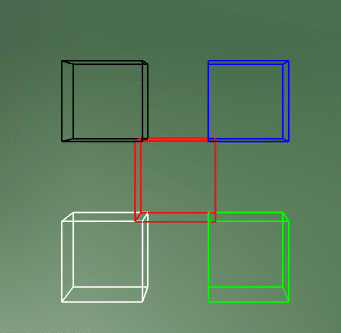

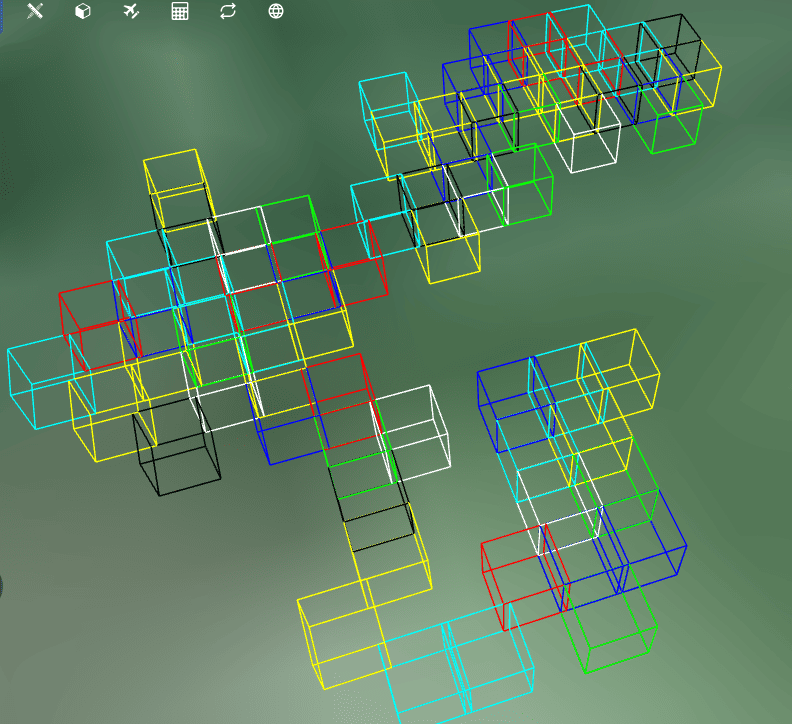

相邻网格自动扩展，测试代码

import {
    bdgrid_2d_between,
    bdgrid_2d_codelevel,
    bdgrid_2d_decode,
    bdgrid_2d_derefer,
    bdgrid_2d_encode,
    bdgrid_2d_join,
    bdgrid_2d_neighbors,
    bdgrid_2d_refer,
    bdgrid_2d_refer_range,
    bdgrid_2d_shorten,
    bdgrid_2d_size,
    bdgrid_2d_split,
    bdgrid_3d_code2d,
    bdgrid_3d_codelevel,
    bdgrid_3d_contains,
    bdgrid_3d_decode,
    bdgrid_elevation_decode,
    bdgrid_elevation_encode,
    bdgrid_3d_elevationcode,
    bdgrid_elevation_code,
    bdgrid_3d_encode,
    bdgrid_3d_join,
    bdgrid_3d_neighbor,
    bdgrid_3d_neighborcode,
    bdgrid_3d_neighborcode2,
    bdgrid_3d_parentcode,
    bdgrid_3d_split,
    Codec3D,
    getGrid2DRowCol,
    getGrid3DMeshMeta,
    getGridBox,
    getGridBoxByCode3D,
    getGridBoxByStruct,
    getN} from 'xgis-bdgrid';

async function testBDGridEngine2(primitiveCollection: Cesium.PrimitiveCollection)
{
    const code3D = bdgrid_3d_encode({
        lngDegree: 114,
        latDegree: 25,
        elevation: 2000,
    }, 5);

   const code3DStruct=bdgrid_3d_split(code3D);
//    drawGridByCode(code3D,primitiveCollection);
//   const code3DStructE= bdgrid_3d_neighborcode(code3D,'NW');
//    drawGridByCode(code3DStructE,primitiveCollection,'#00f');
//    console.log('444444444',code3DStruct,code3DStructE);
//,'SW','NW'   'NE','SE','SW','NW', 'U',
 const group=['E','W','N','S','NE','SE','SW','NW'];//['E','SE','SW'];//,'U','D'  ,'U','D'
 const colorStrs=['#00f','#0f0','#FFF','#000','#ff0','#ff0','#0ff','#0ff','#f00','#ff'];
 let current=code3DStruct;
 for(let i=0;i<100;i++)
 {
    const dir=getRandomItem(group);//'E';
    const code3DStructE= bdgrid_3d_neighborcode2(current,dir);
   drawGridByCode(code3DStructE,primitiveCollection,colorStrs[i%9]);
   current=code3DStructE;
   console.log('000000000完成第：'+i,dir);
 }
}

async function drawGridByCode(code3d:string|IBDCodeStruct,primitiveCollection: Cesium.PrimitiveCollection,colorStr='#f00')
{
    let gridBoxOption:any;
   if(isString(code3d))
    gridBoxOption=await getGridBoxByCode3D(code3d);
   else
   gridBoxOption= await getGridBoxByStruct(code3d);
    if (gridBoxOption)
    {
        //console.log('7777777777888',colorStr,gridBoxOption);
        drawGridBoxOutline(gridBoxOption, primitiveCollection, colorStr);
    }
}

//根据高度和级别，计算层级
 const n1=  getN(5,551);

//根据三维码，计算高度值和层级
 const codeEle0 = bdgrid_elevation_code(code3DStruct);
 const height0 =bdgrid_elevation_decode(codeEle0);
 const n0 = getN(5, height0);

同步参考：https://www.npmjs.com/package/beidou-grid-location-codec
